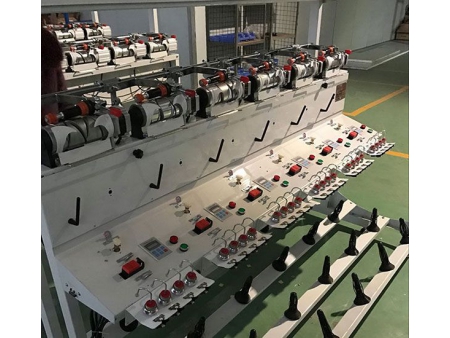

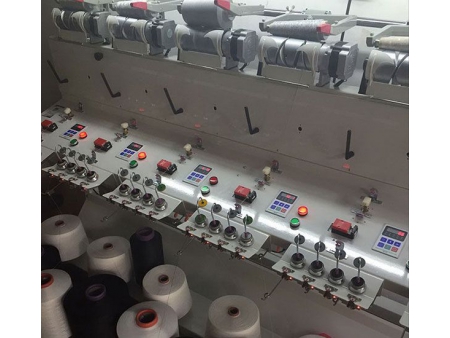

GH018-G High Speed Yarn Doubling Winding Machine
Request a Quote
Technical Parameters
| Number of spindles | 6-96, 6 per section |
| Spindle gauge | 280mm |
| Number of yarn strand | 2-4 plys (generally 2-3ply) |
| Anti-patterning device | Inverter control |
| Yarn count range | Ne8-120 |
| Drive | Frequency control, individual motor per spindle |
| Installed power | 60W/spindle, max.: 60W×96 |
| Length counter | Each spindle is installed with a length counter |
| Yarn detector | Photoelectric sensor |
| Take-up tubes | Conic or cylindrical shape |
| Doubling drum | Zinc alloy |
| Dimension | 2098×800×1550mm (6 spindles) |
| Lighting system | Lamp |
| Air splicer | Optional |
| Blower cleaner | Optional |
Main features
- Drive: each spindle is driven by an individual AC motor.
- Winding speed is adjustable within 300-800m/min.
- Each spindle is installed with an auto-stop device and it will automatically stop when yarn breaks.
- Each spindle is equipped with a length counter.
