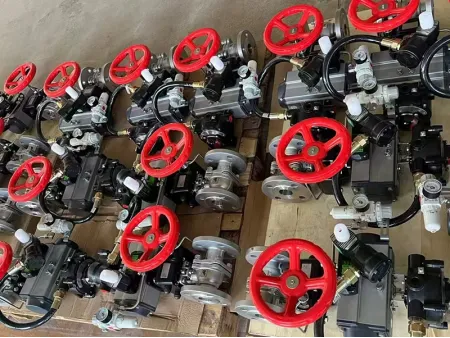

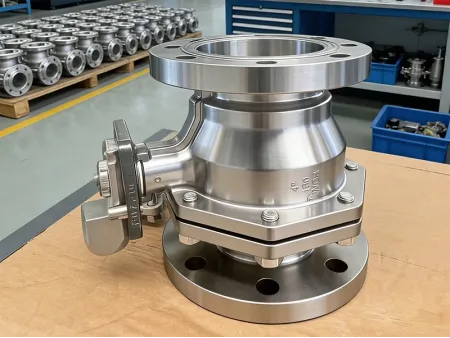

API 6D Flanged Ball Valve (Stainless Steel ANSI Ball Valve)

Request a Quote

Website: https://customsteelvalve.com/api-6d-flanged-ball-valve-1-1-2.html

Model: 150LB\300LB

• Nominal Diameter: 1/4"-12"
• Materials: 316, CF8M, 1.4408, WCB, 304, CF8, etc.
• Pressure Rating: 150LB, 300LB
• Inspection & Testing: API 598, API 6D
• Surface Treatment: Pickling, Passivation, Polishing (or as per customer request)
• Operating Temperature: ≤ 120°C
• Suitable Media: Water, Steam, Oil, Gas, Acids, Alkalis, etc.

Applicable Standards

Design	Face to Face	Flange End	Inspection & Testing	Marking	Supply
ANSI 600	ANSI B16.10	ANSI B16.5	API 598	MSS SP-25	ANSI 608
API 6D	API 6D		API 6D	API 6D	API 6D

Dimensions

NPS	DN	Size (mm) CN
in	mm	L	D	D1	D2	b	Z-Ød
	Q41F-150Lb Q41F-150LbP	Q341F-150Lb Q341F-150LbP		Q641F-150Lb Q641F-150LbP		Q9B41F-150Lb Q9B41F-150LbP
1/2"	15	108	90	60.5	35	11.5	4-15
3/4"	20	117	100	70	43	11.5	4-15
1"	25	127	110	79.5	51	12	4-15
1 1/4"	32	140	115	89	64	13	4-15
1 1/2"	40	165	125	98.5	73	15	4-15
2"	50	178	150	120.5	92	16	4-19
2 1/2"	65	190	180	139.5	105	18	4-19
3"	80	203	190	152.5	127	19	4-19
4"	100	229	230	190.5	157	24	8-19
5"	125	356	255	216	186	24	8-22
6"	150	394	280	241.5	216	26	8-22
8"	200	457	345	298.5	270	29	8-22
10"	250	533	405	362	324	31	12-25
12"	300	610	485	432	381	32	12-25
	Q41F-300Lb Q41F-300LbP	Q341F-300Lb Q341F-300LbP		Q641F-300Lb Q641F-300LbP		Q9B41F-300Lb Q9B41F-300LbP
1/2"	15	140	95	66.5	35	14.5	4-15
3/4"	20	152	115	82.5	43	16	4-19
1"	25	165	125	89	51	17.5	4-19
1 1/4"	32	178	133	98.5	64	19.5	4-19
1 1/2"	40	190	155	114.5	73	21	4-22
2"	50	216	165	127	92	22.5	8-19
2 1/2"	65	241	190	149	105	25.5	8-22
3"	80	282	210	168.5	127	29	8-22
4"	100	305	255	200	157	32	8-22
5"	125	381	280	235	186	35	8-22
6"	150	403	320	270	216	37	12-22
8"	200	502	380	330	270	41.5	12-25
