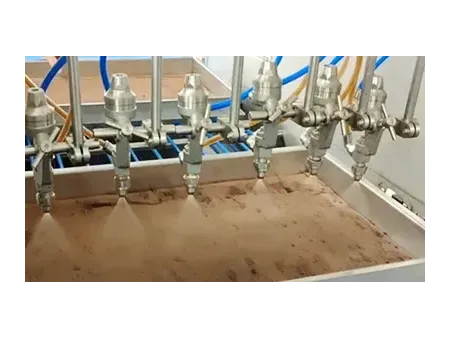

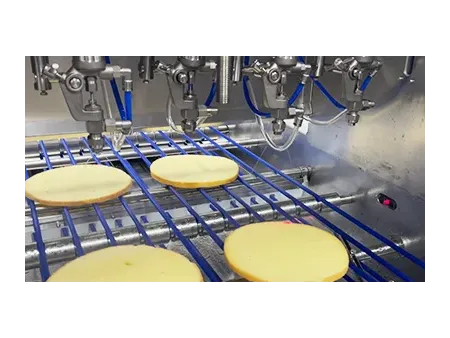

Automatic Syrup Sprayer/Egg Wash Sprayer PTS4
(Glazing Machine)
The automatic syrup sprayer is designed for applying syrup, liquid egg, oil, coffee, glazing agents, and other liquid materials to the surface of bread and cakes.
Conventional methods such as manual brushing or handheld spray guns result in limited production capacity, inconsistent coating quality, unsatisfactory workshop conditions, and potential contamination risks caused by brush fiber detachment. The automatic spraying machine addresses these limitations through a stable spraying system, precise control, and efficient production capacity. A patented mist and residual liquid collection device improves coating consistency, maintains equipment and workshop cleanliness, reduces material waste, lowers hygiene risks, and decreases labor requirements.
The equipment adopts a modular design that allows tool-free disassembly and cleaning, meeting disinfection standards.
| Model | PTS4 |
| Power | 1.0kW |
| Voltage | 220V/50Hz/60Hz |
| Compressed air pressure & flow | 0.4-0.6MPa, 350L/min |
| Capacity | 5-12 trays/min |
| Dimensions (L×W×H) | 1700×1430×1465mm |
- Features strong compatibility with various mold and baking tray specifications. The equipment can operate independently or be integrated into a production line.
- Utilizes adjustable spraying volume, height, and angle. Maximum tray width: 660 mm. Production capacity: 5-12 trays per minute.
- Modular design facilitates sanitation procedures. The equipment materials are compatible with CIP solvent sterilization and disinfection processes.
- Equipped with a patented residual liquid recovery and mist collection system to maintain a cleaner production environment.
Sanitary-grade materials with modular construction.
Tool-free disassembly for rapid cleaning procedures.
Touchscreen control system is capable of storing more than 50 production parameter sets for immediate recall.
- Selection of syrup spraying system or liquid egg spraying system (equipped with dedicated spray guns)
- Optional handheld cleaning spray gun, mist collection system, and filtration mesh
- Various nozzle types and quantities available according to liquid viscosity
- Optional 18-40 L tank capacity
