Panel Bending Machine

Request a Quote

View All: http://accurlcnc.com/bending-center.html

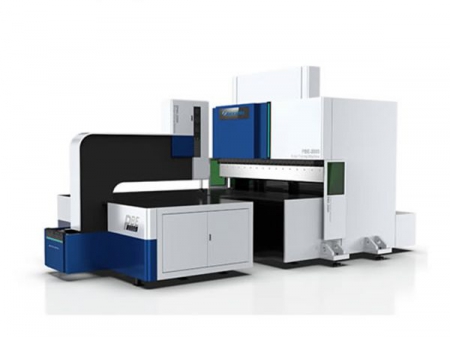

The PBE series panel bender represents the next generation of automated bending technologies and serves as a benchmark for the industry's transition to automation in sheet metal fabrication. It can significantly reduce labor costs while achieving 300% higher efficiency than traditional bending machines, with bending times of up to 0.3 seconds per bend. The precision is significantly improved by closed-loop BUS control and full electro servo transmission.

The multilateral bending center does not need to change the mold, the working stroke is short, and the feed is fast.
It can be automatically folded up and down in accordance with the bending process to accomplish the bending of arcs, dead edges, and varied angles.
Highly intelligent operation control system is adopted so that different workpieces can be bent effectively.

Specifications

Name		Unit	PBE-1400	PBE-2000	PBE-2500
Max. Bending Length		mm	1400	2000	2500
Max. Sheet Width		mm	1500	1500	1500
Max. Bending Height		mm	170	170	170
Min. Workpiece Size (four sides bending)		mm	110x200	110x200	110x200
Min. Workpiece Size (single side bending)		mm	110	110	110
Min. Radius		mm	1.2	1.2	1.2
Bending Angle		°	±180	±180	±180
Max. Bending Speed		s/bending	0.5	0.5	0.5
Min. Sheet Thickness		mm	0.35	0.35	0.35
Max. Sheet Thickness	SS	mm	1.0	1.0	1.0
	MS	mm	1.5	1.5	1.5
	AL	mm	2.0	2.0	2.0
Dimensions（L×W×H）		mm	3100x5300x2600	3100x6050x2600	3100x6050x2600
Full Power		kW	45	45	45
Working Voltage		V	380V±10%	380V±10%	380V±10%

Features

2. Multi Positioning Ways

  The servo motor controls the movement of the positioning L-block, which is fast and accurate.

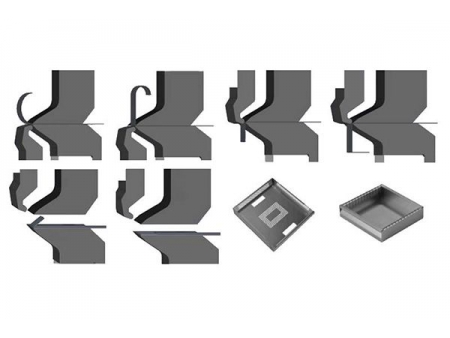

2. Universal Tooling

  The standard bending tool is powerful, which can realize both UP and DOWN bending process, without rotate the sheet. It can also perform HEM bending and big ARC bending automatically.

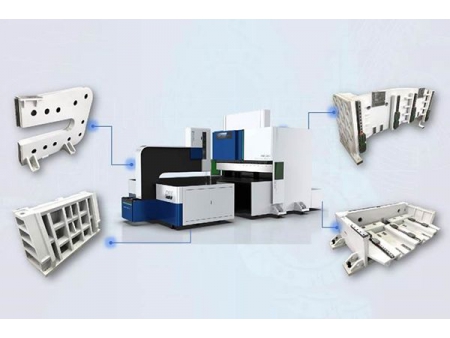

2. Plate Welding Frame

  The servo motor controls the movement of the positioning L-block, which is fast and accurate.

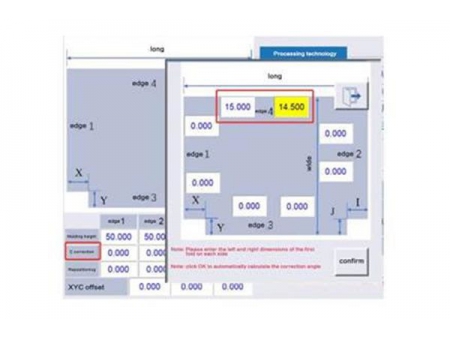

2. Automatic Correction of Rotation Angle

  The automatic correction function can automatically adjust the C/C11 axis to compensate for sheet rotation errors.
2. Controlling System

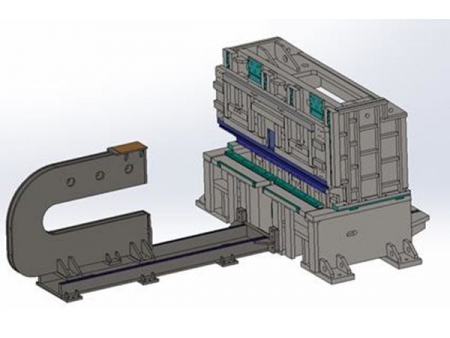

  In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened. The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the bending machine.

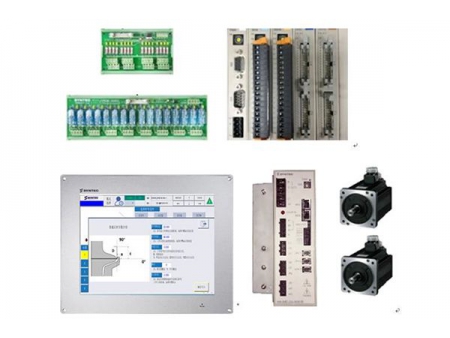

2. Servo System

  The pure electric servo fully closed-loop system is adopted, and the system supports up to 16 axes concurrent linkage, so that the bending action is smooth, the mechanical operation is highly coordinated, and the combination of various complex actions can be smoothly realized. The whole bending machine has high working efficiency and low daily maintenance workload. It has a self-lubricating system for the whole machine. When the oil amount is lower than the specified value, the system will automatically alarm. Just follow the program prompts to add lubricating grease.
