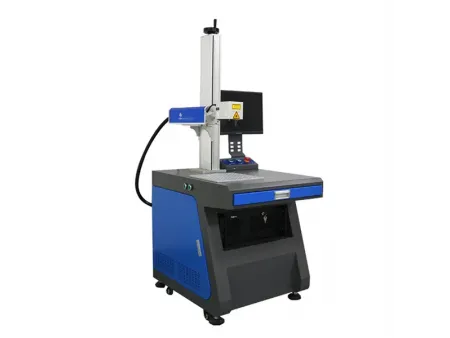

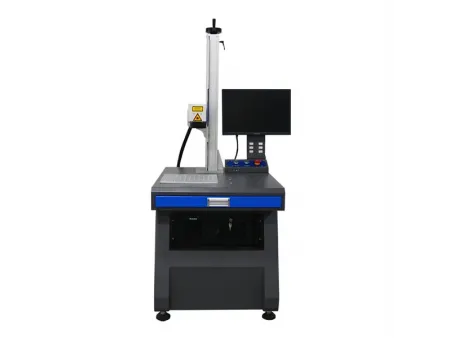

Fiber Laser Engraving Machine, 20/30/50W
Request a Quote
- Laser type: Q-Switch
- Laser Power: 20 / 30 / 50W
- Marking range: 50x50 - 300x300mm
- Min.Character : 0.05mm
Hi speed Laser YLP-20L/30L/50L/100L adopts Chinese most advanced fiber laser source and high-quality galva scanning system.
It can provide stable power output, perfect optical mode, good beam quality and high speed marking, so users can get a perfect effect and high efficiency, which can fulfill massive production.
The advantages of this machine is as following:good looking,easy operation,no need material,no need maintenance,no faulty in long time working.So it can meet the demand of industrial continuous work.
Technical Specifications
| Model | | | |
| Laser Type | Q-Switch | ||
| Laser Power | 20W | 30W | 50W |
| Wavelength | 1064nm | ||
| Beam Quality | M2< 1.5 | ||
| Marking Range | 50x50mm – 300x300mm(optional) | ||
| Max.Line Speed | 7000mm/s | ||
| Min.Line Width | 0.01mm | ||
| Min.Character | 0.05mm | ||
| Repeatability | ±0.01mm | ||
| Cooling Mode | Air Cooling | ||
| Power Requirement | 220V±10%/50Hz or 110V±10%/60Hz | ||
Applications & Samples
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.
