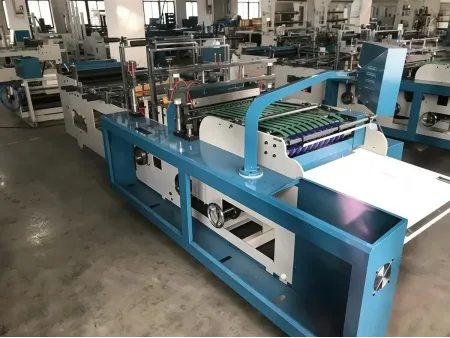

BC-500/600/800 Polythene Bag Making Machine
The series of grip seal bag making machine is an automated system specifically designed to convert LDPE (Low-Density Polyethylene) film into plastic bags with integrated resealable closures. The machine integrates the entire production cycle, including film unwinding, tension control, heat-sealing of the zipper profiles, longitudinal sealing, and final cutting.
The core technology lies in the precision application of the self-sealing strips. Utilizing advanced thermal welding units, the zipper bag machine fuses separate zipper profiles securely onto both sides of the bag mouth, ensuring high sealing strength and airtight performance.
- Precision Control
Equipped with Delta servo systems and LED touch-screen interfaces, the ziplock bag maker ensures stable film feeding and minimal operational errors during high-speed production.
- Thermal Sealing & Cutting
The grip seal bag making machine employs a combined heat-sealing and heat-cutting process. By melting the thermoplastic material at the point of contact, it produces clean, smooth edges without fraying or burrs.
- Versatile Application
This model is capable of producing various bag types, including standard grip-seal bags and flat heat-sealed bags, suitable for industries such as food, medicine, and electronics packaging.
| Model | | | |
| Raw Material | LDPE | LDPE | LDPE |
| Output | 60-200 pcs/min | 60-200 pcs/min | 60-180 pcs/min |
| Bag Width | 40-350mm | 40-350mm | 40-600mm |
| Bag Length | 40-450mm | 40-550mm | 200-750mm |
| Film Thickness | 0.03-0.15mm | 0.03-0.15mm | 0.03-0.15mm |
| Heating Power | 2kW | 2kW | 2kW |
| Cooling Power | 0.37kW | 0.37kW | 0.37kW |
| Total power | 8kW | 8kW | 10kW |
| Dimension (L×W×H) | 3800×1300×1600mm | 3800×1300×1600mm | 4000×1700×1600mm |
