High Pressure Washer
Skid-mounted or trailer-mounted water blasters for pipeline cleaning, heat exchanger/condenser tube maintenance and general industrial cleaning
QX-700 series high-pressure washer is available in both fixed and mobile configurations. It is suitable for cleaning pipelines of various diameters, heat exchangers, condensers, chemical equipment, ships, petroleum facilities, buildings, and other industrial components. The power end adopts a crankshaft and connecting rod transmission structure and uses splash lubrication, enabling continuous 24-hour operation without the need for cooling. The fluid end is equipped with safety valves and flow control valves, forming an integrated system that allows flow adjustment to meet diverse operational requirements.

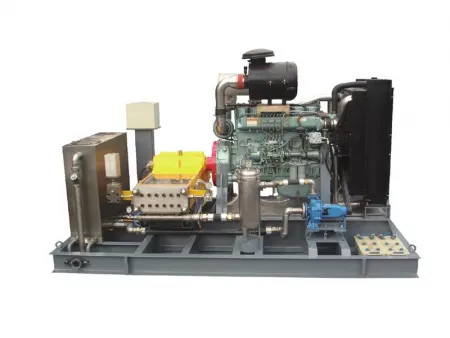

Skid-Mounted High Pressure Water Blaster
- Max. pressure: 70 MPa
- Max. flow: 156 L/min

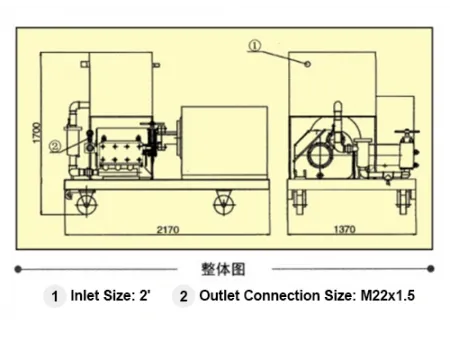

- Dimensions: 2170×1470×1370 mm
| Input Speed (r/min) | 1480r/min | Plunger Stroke (mm) | 100 | ||||
| Diesel Power (HP) | 50 | 60 | 75 | 100 | 120 | Plunger Dia. (mm) | |
| Motor Power (kW) | 37 | 45 | 55 | 75 | 90 | ||
| Theoretical Flow | Rated Pressure (MPa) | ||||||
| m³/h | L/min | ||||||
| 4.2 | 70 | 28 | 35 | 42 | 57 | 70 | 30 |
| 4.80 | 80 | 26 | 32 | 39 | 53 | 62 | 32 |
| 5.70 | 95 | 21.5 | 26 | 32 | 44 | 50 | 35 |
| 7.38 | 123 | 16.5 | 20 | 25 | 34 | 40 | 40 |
| 9.36 | 156 | 12 | 16 | 19.5 | 26.5 | 30 | 45 |

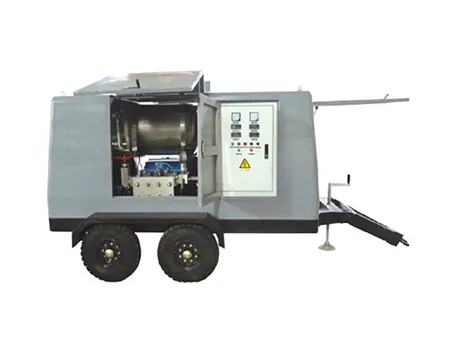

Trailer-Mounted High Pressure Water Blaster
The trailer-mounted design enables flexible movement and rapid deployment without the need for fixed foundations. This high-pressure water blaster is suitable for temporary operations such as emergency drainage and outdoor water injection, significantly reducing installation time and cost.
- Max. pressure: 81 MPa
- Max. flow: 156 L/min
| Input Speed (r/min) | 1480 | Plunger Stroke (mm) | 100 | |||||
| Theoretical Flow | Motor Power (kW) | Plunger Dia. (mm) | ||||||
| 22 | 37 | 45 | 55 | 75 | 90 | |||
| m³/h | L/min | Rated Pressure (MPa) | ||||||
| 1.00 | 17 | 63 | // | // | // | // | // | 15 |
| 1.80 | 30 | 36 | 64 | 78 | // | // | // | 20 |
| 2.90 | 48 | 22 | 40 | 49 | 60 | 81 | // | 25 |
| 4.20 | 70 | 15 | 28 | 35 | 42 | 57 | 70 | 30 |
| 4.80 | 80 | 13 | 26 | 32 | 39 | 53 | 62 | 32 |
| 5.70 | 95 | 11 | 21.5 | 26 | 32 | 44 | 50 | 35 |
| 7.38 | 123 | 8.7 | 16.5 | 20 | 25 | 34 | 40 | 40 |
| 9.36 | 156 | 6.9 | 12 | 16 | 19.5 | 26.5 | 30 | 45 |
High-pressure washing pump effectively remove hull rust and marine biological fouling, reducing drag resistance and improving energy efficiency.
