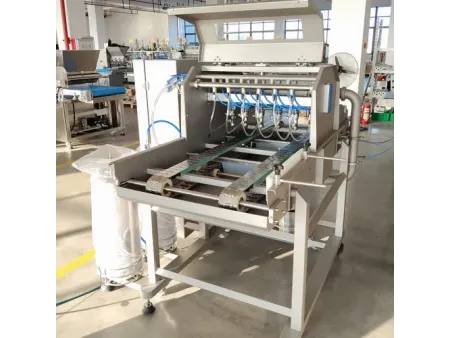

Oil Spraying Machine PY600/PY601/PY602
(Release Agent Sprayer)
The oil spraying machine is used in large-scale bakery production for applying release agent or release oil to baking trays prior to cake or bread depositing. Spraying quality directly affects post-baking demolding performance and determines product integrity.
PY600, PY601, and PY602 models are available in conveyor-integrated, customized, and standard configurations to accommodate different production requirements. The spraying system adopts atomization technology, producing micro-droplet oil particles. The equipment is designed for spraying trays, molds, and baking pans used for toast, cakes, madeleines, confectionery products, and similar applications, achieving efficient operation, hygienic performance, and reduced oil consumption.
| Model | |||
| Power | 1.0kW | 2.5kW | 1.0kW |
| Voltage | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz |
| Compressed air pressure & flow | 0.4-0.6Mpa 350L/min | 0.4-0.6Mpa 350L/min | 0.4-0.6Mpa 350L/min |
| Capacity | 5-12 trays/min | 5-12 trays/min | 5-12 trays/min |
| Dimensions (L×W×H) | 1500×910×1100 | 1700×1040×1600 | 1700×1430×1465 |
- Atomized spraying ensures uniform and consistent oil coverage. Complex molds with a maximum tray width of 660 mm can achieve reliable demolding, significantly reducing product loss.
- The nozzles combined with a constant-pressure system ensure uniform application and minimize release oil consumption.
- The integrated mist recovery system effectively suppresses oil mist dispersion, maintaining equipment cleanliness and improving workshop hygiene conditions.
The oil spraying machine is manufactured from full stainless steel suitable for food processing environments.
Design allows operation and cleaning procedures to be performed without additional tools.
The control interface stores more than 100 application parameter sets. Preset data can be recalled directly, enabling rapid adjustment to different molds and oil requirements.
PY602 model is equipped with a patented mist collection system to enhance production environment cleanliness.
- Customizable number of spray guns
- Integration with existing conveyor lines or configuration with an independent conveyor
