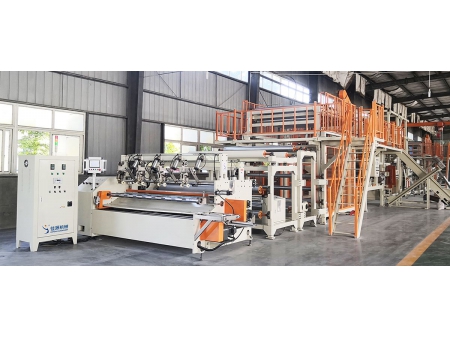

Polymer Self-Adhesive Waterproofing Membrane Production Line
Request a Quote
Complete coating line for non-bitumen-based polymer backing

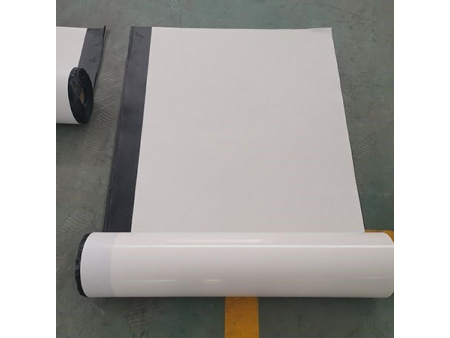

The polymer self-adhesive waterproofing membrane production line comprises front material storage, adhesive coating, film laminating, sand placement, material storage, automatic cutting, winding, and unloading devices. With automatic edge correction system, adhesive applicating pressure stabilizing system, and PLC touchscreen control, high automation is achieved, reducing labor costs while offering convenience. The produced waterproofing membrane is primarily used in construction, leak repair, sealing, wind power, battery, etc. industries.
Specifications
| Effective Coating Width | 1000-4000mm |
| Coating Weight | 80-500g/m² |
| Machine Speed | 1-30m/min |
| Power Supply | 380v±15PHz |
Parameters can be adjusted according to specific customer requirements.
Features
- Automatic edge correction system, adhesive applicating pressure stabilizing system, as well as touch screen PLC control.
- Specially designed applicator head flow channel, ensuring uniform and precise application and non-stop material changing.
- Highly automated, convenient operation, labor-saving and material-saving.
- Membrane width customizable upon request.
Frequently Asked Questions
Web coating is the continuous application of coatings, whether they are solid or liquid, onto specific substrates to achieve new functionality. This technology can be used on a wide range of substrates, such as plastics, paper, and even metals.
The web coating process is used in many industrial applications, including pressure-sensitive tapes and labels, flexible packaging, photographic films, coated vinyl, wall coverings, sandpapers and other abrasives, corrugated boxes, vinyl flooring, production of industrial and decorative laminates, carbon and carbonless papers, RFID tags, and printed circuit boards.
Different types of coating lines may be found in each industry, but generally, every system is based on a roller design and includes a metering system for applying the coating material onto the substrate, as well as a drying tunnel, conveying system, or transfer system.
Roll-to-roll processing is a film processing method that embeds, coats, prints, or laminates various fluid materials onto flexible roll-shaped substrates, which are then continuously transported from one roll to another (unwind to rewind).
