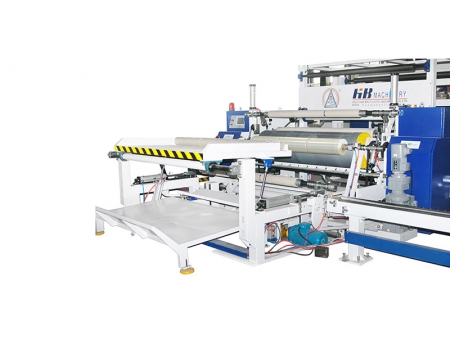

1500mm/2000mm Stretch Film Extrusion Line

1500mm/2000mm Stretch Film Extrusion Line
Request a Quote
  • 1500mm PE stretch film extrusion line
  • 2000mm PE stretch film extrusion line

The stretch film extrusion line adopts LLDPE (linear low density polyethylene) as main raw materials to produce one-sided or two-sided cling stretch wrap films with 3-layer or 5-layer structure. By utilizing specific recipe components and processes for silage film, this cast film line is applicable to manufacture high quality agricultural stretch film.

Features
  • Advanced reel manipulator can be equipped to automatically load paper cores and films, greatly reducing the labor cost;
  • Adopting 3-layer or 5-layer co-extrusion with automatic changeover system, results fast roll changing and giving an outstanding performance and appearance for the stretch wrap films;
Specifications
Model 1500mm 2000mm
Width of Film (mm) 1500 (500×3 rolls) 1500 (500×3 rolls) 2000 (500×4 rolls) 2000 (500×4 rolls)
Thickness of Film (mm) 0.012-0.035 0.012-0.035 0.012-0.035 0.012-0.035
Structure of Film A/B/C A/B/C A/B/C A/B/C
Max. Output (kg/h) 400 510 510 650
Rated Line Speed (m/min) 200 250 200 250
Applications
  • PE stretch wrap film: frequently used as pallet wrap film for pallet goods packaging, which is an ideal alternative to heat-shrinkable films;
  • Silage film: is an agricultural film provides a weather shield for pasture and forage, playing an critical role in preservative action during winter;
