BC01 Circular Connectors (Three-Pin)
Request a Quote

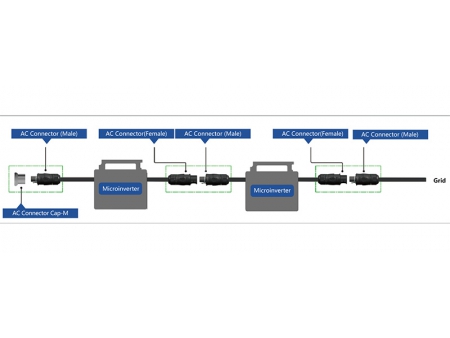

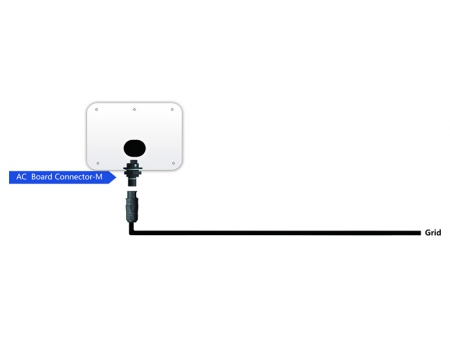

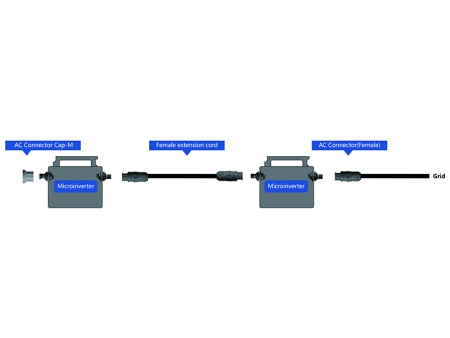

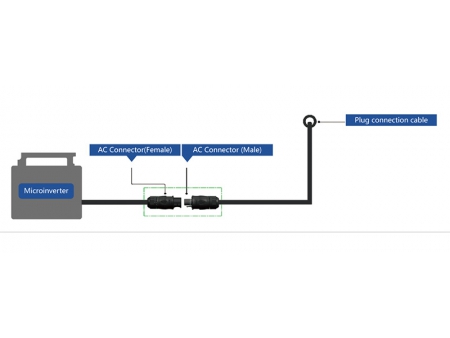

Our DC photovoltaic connectors are used for the connection of panels, inverters or junction boxes. Different tools are used for screw installation and removal, and each coupler has an exceptional resistance to UV light, salt spray, high temperature, vibration, and shock, as well as feature an outstanding sealing performance. Each coupler is TUV certified for quality and reliability.
- Power range: 1000w-5000w, single phase
- Rated voltage: 250v/350V AC (CSA) 250V AC (TUV)
- Rated current: 25A (4mm2), maximum current: 30A（4mm2）
- Electrode cores: 2 PE
- Waterproof Rating: IP68(1.5m,24h)
- Applicable wire gauge: 2.5/4.0mm2
- Outer cable diameter (OD): 10-13mm
BC01(CC2)
- Art. No.(TUV, CSA 250A): BC01-3M22-15
- Art. No.(CSA 350A): BC01-3F22-15
- Quantity per unit pack: 10 Pieces
Technical Parameters
General
| Number of Contacts | 2 PE |
| Rated Current | 25A(when use 4mm² wire) |
| Rated Voltage | TUV: 250V AV CSA:250/350V AV |
| Contact Resistance | ≤1mΩ |
| Rated Impulse Withstand Voltage | 4000V AC |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2(mated) |
| Waterproof Rating | IP68 (1.5m,24h) |
| Insertion and Withdraw Force | 10~50N |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~ 85℃ |
Connection Data
| Applicable Wire Gauge | 2.5/4.0mm² or 14/12/10AWG |
| Outer Cable Diameter | 10~13mm |
| Locking System | Bayonet |
Model
| Connector Gender | Male |
| Wiring Connection | Screw Type |
Material
| Housing and Dielectric Material | PPO(Polyphenylene Oxide) |
| Contact Material | CuZn Alloy(cutting) |
| Contact Surface | Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 61535:2012 PPP 59015A:2013 | IEC and VED- Safety requirements and tests |
| UL6703A | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |
Dimensions
| Length | 85.5mm |
| Width | 35.0mm |
| Height | 35.0mm |
| Weight | 49.48g |
BC01-3F22-15
- Art. No.(TUV, CSA 250A): BC01-3F22-15
- Art. No.(CSA 350A): BC01-3F22-15
- Quantity per unit pack: 10 Pieces
General
| Number of Contacts | 2 PE |
| Rated Current | 25A(when use 4mm² wire) |
| Rated Voltage | TUV: 250V AV CSA:250/350V AV |
| Contact Resistance | ≤1mΩ |
| Rated Impulse Withstand Voltage | 4000V AC |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2(mated) |
| Waterproof Rating | IP68(1.5m, 24h) |
| Insertion and Withdraw Force | 10~50N |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~ 85℃ |
Connection Data
| Applicable Wire Gauge | 2.5/4.0mm² or 14/12/10AWG |
| Outer Cable Diameter | 10~13mm |
| Locking System | Bayonet |
Model
| Connector Gender | Female |
| Wiring Connection | Screw Type |
Material
| Housing and Dielectric Material | PPO(Polyphenylene Oxide) |
| Contact Material | CuZn Alloy(cutting) |
| Contact Surface | Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 61535:2012 PPP 59015A:2013 | IEC and VED- Safety requirements and tests |
| UL6703A | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |
Dimensions
| Length | 85.5mm |
| Width | 35.0mm |
| Height | 35.0mm |
| Weight | 50.96g |
BC01(FC2)
- Art. No.(TUV, CSA 250A): BC01-3M22-05
- Art. No.(CSA 350A): BC01-3F22-15
- Quantity per unit pack: 10 Pieces
Technical Parameters
General
| Number of Contacts | 2 PE |
| Rated Current | 25A(when use 4mm² wire) |
| Rated Voltage | TUV: 250V AV CSA:250/350V AV |
| Contact Resistance | ≤1mΩ |
| Rated Impulse Withstand Voltage | 4000V AC |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2(mated) |
| Waterproof Rating | IP68(1.5m, 24h) |
| Insertion and Withdraw Force | 10~50N |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~ 85℃ |
Connection Data
| Applicable Wire Gauge | 2.5/4.0mm² or 14/12AWG |
| Outer Cable Diameter | 10~13mm |
| Locking System | Bayonet |
Model
| Connector Gender | Male |
| Wiring Connection | Screw Type |
| Fixed Thread Metric | M25 |
| Size of Panel Cutout | Φ25.5 0.2/0 |
Material
| Housing and Dielectric Material | PPO(Polyphenylene Oxide) |
| Contact Material | CuZn Alloy |
| Contact Surface | Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 61535:2012 PPP 59015A:2013 | IEC and VED- Safety requirements and tests |
| UL6703A | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |
Dimensions
| Length | 50.0mm |
| Width | 36.0mm |
| Height | 36.0mm |
| Weight | 26.08g |
- Art. No.(TUV,CSA 250A): BC01-3F22-15
- Art. No.(CSA 350A): BC01-3F32-15
- Quantity per unit pack: 10 Pieces
Technical Parameters
General
| Number of Contacts | 2 PE |
| Rated Current | 25A(when use 4mm² wire) |
| Rated Voltage | TUV: 250V AV CSA:250/350V AV |
| Contact Resistance | ≤1mΩ |
| Rated Impulse Withstand Voltage | 4000V AC |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2(mated) |
| Waterproof Rating | IP68(1.5m, 24h) |
| Insertion and Withdraw Force | 10~50N |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~ 85℃ |
Connection Data
| Applicable Wire Gauge | 2.5/4.0mm² or 14/12AWG |
| Outer Cable Diameter | 10~13mm |
| Locking System | Bayonet |
Model
| Connector Gender | Female |
| Wiring Connection | Screw Type |
Material
| Housing and Dielectric Material | PPO(Polyphenylene Oxide) |
| Contact Material | CuZn Alloy |
| Contact Surface | Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 61535:2012 PPP 59015A:2013 | IEC and VED- Safety requirements and tests |
| UL6703A | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |
Dimensions
| Length | 85.5mm |
| Width | 35.0mm |
| Height | 35.0mm |
| Weight | 50.96g |
