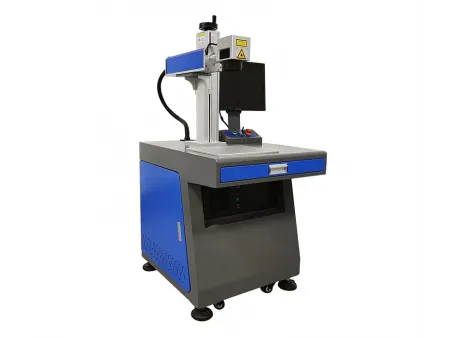

Desktop Fiber Laser Marking Machine
- Laser wavelength 1064nm
- Marking range 50×50mm~300×300mm
- Beam quality M²<1.5
- Max. line speed 7000mm/s
The desktop fiber laser marking machine is designed with user-friendliness in mind. Its integrated equipment-and-workstation design fully conforms to ergonomic standards, eliminating the need for factories to set up additional workstations, which significantly reduces space occupation. The intuitive software control interface allows even first-time users to quickly set up and begin marking. Our laser marking machines stand out due to their versatility. They support multiple marking modes, including text, barcodes, and trademarks, enabling you to customize identification according to specific needs. This makes them ideal for product identification, anti-counterfeiting measures, or decorative purposes.
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE
- Stainless steel laser marking
- Pen laser marking
- Business card case laser marking
- Brass laser marking
- Aluminum alloy laser marking
- Carbide drill bit laser marking
- Serial number laser marking
- Metal flask laser engraving
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 20W, 30W, 50W, 60W, 100W, 120W, 200W
- Laser type fiber laser
- Laser wavelength 1064nm
- Marking range 50×50mm~300×300mm
- Beam quality M²<1.5
- Max. line speed 7000mm/s
- Min. character size 0.05mm
- Min. line width 0.01mm
- Cooling method air cooling
- Power supply 110V~240V, 50~60Hz
- Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)

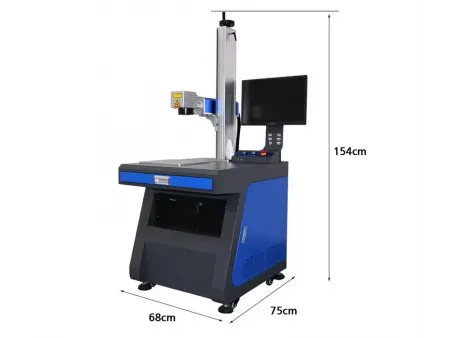

- Machine dimensions 680×750×1540mm
- Package size 890×700×1130mm
- Machine weight 109kg
- Package weight 119kg
- 20W laser powerWorking area ≤110×110mm for surface marking
- 30W laser powerWorking area ≤200×200mm for surface marking
- 50W laser powerWorking area ≤110×110mm for soft metal cutting (gold, silver, aluminum, etc.)
- 60W laser powerWorking area ≤300×300mm for surface marking
- 100W laser powerWorking area ≤150×150mm for fine metal engraving
- 120W laser powerWorking area ≤200×200mm for micro engraving on metal
- 200W laser powerWorking area ≤200×200mm for 0.5mm deep metal engraving
Laser source
We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.
Galvo scanner
Characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

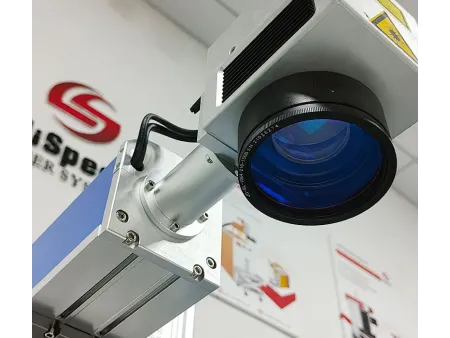

F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Industrial computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.
Column
Enables electric lifting and lowering, accommodating marking for workpieces of different heights without manual adjustment, greatly improving overall work efficiency.
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- Cutting fixture (laser engraving vise)
- F-theta lens
- Rotary axis for ring
- Rotary roller
- Rotary axis
- Fiber laser
- Laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Industrial computer
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
Can this industrial laser equipment produce clear and permanent marks on my common materials?
Is the marking effect of laser marking systems consistent across materials of different colors and textures?
When performing routine content marking with fiber laser marker machines, how many products can be processed per minute?
When increasing the marking depth of a laser engraver, will the speed decrease significantly?
Does industrial laser equipment support continuous long-term operation? How long can it run daily?
