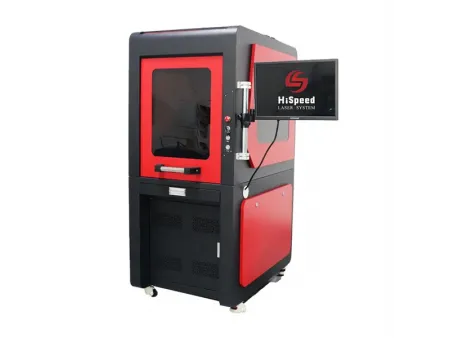

Integrated Fiber Laser Marking Machine
| Model | FC-MOPA 30 |
| Laser Source | MOPA fiber laser |
| Laser Power | 30W |
| Laser Wavelength | 1064 nm |
| Working Area | 4×4inch / 7×7inch |
| Marking Speed | ≤5000mm/s |
| Min. Line Width | 0.03mm |
| Min. Character | 0.3mm (depending on materials) |
| Marking Depth | ≤1mm (adjustable based on materials) |
| Repeat Accuracy | ±0.002mm |
| Power Supply | Optional: AC220V/50/60Hz |
| Temperature/ Humidity | 0~35℃/10~95% |
| Power Consumption | ≤800W |
| Cooling Method | Air cooling |
The above parameters are based on laboratory testing and may vary under actual operating conditions
The JPT M7 series high-power pulsed fiber laser source operates with a Master Oscillator Power Amplifier (MOPA) configuration, providing precise and efficient marking capabilities.
The galvo scanner head is characterized by high speed, high linearity, high stability, and low thermal drift, ensuring consistent and accurate marking performance.
Yes, our laser marking machines are equipped with comprehensive safety features and comply with local safety standards and regulations.
Our software supports a variety of marking functions, including text, graphics, barcodes, and QR codes. It also offers comprehensive design, editing, import, and export capabilities, making it a reliable tool for all your marking needs.
