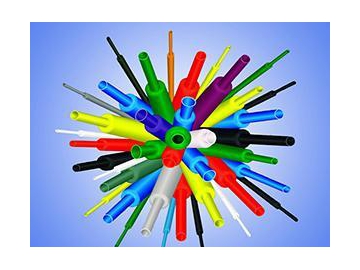

Zero Halogen Heat Shrink Tubing
Request a Quote
Model: CB-HFT(600)
Description

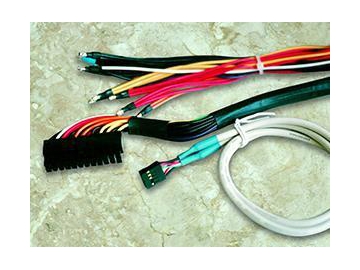

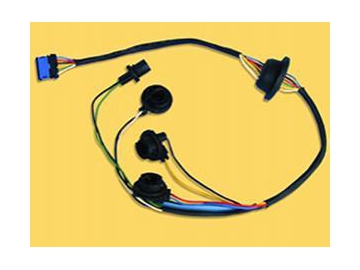

Zero halogen heat shrink tubing is a single-wall tubing manufactured using irradiated cross-linked modified Polyolefin, and features an outstanding insulation, heat resistant, and high voltage resistant performance. It is widely used as insulation protective tubing for wire connectors and wire cables in automotive, electronic, metro, construction, communication and utility fields.
Shrink ratio: 2:1
Size| Size (mm) | As supplied (mm) | After recovery (mm) | ||
| Inside diameter (D) | Wall thickness (T) | Inside diameter (d) | Wall thickness (t) | |
| Ф0.7 | 1.0 0.2/-0.1 | 0.18±0.05 | ≤0.40 | 0.32±0.08 |
| Ф0.8 | 1.2 0.2/-0.1 | 0.18±0.05 | ≤0.45 | 0.34±0.08 |
| Ф1.0 | 1.5 0.2/-0.1 | 0.18±0.05 | ≤0.60 | 0.36±0.08 |
| Ф1.5 | 2.1 0.2/-0.1 | 0.18±0.05 | ≤0.80 | 0.36±0.08 |
| Ф2.0 | 2.5 0.2/-0.1 | 0.20±0.05 | ≤1.00 | 0.42±0.08 |
| Ф2.5 | 3.0 0.2/-0.1 | 0.22±0.05 | ≤1.25 | 0.46±0.08 |
| Ф3.0 | 3.5 0.2/-0.1 | 0.22±0.05 | ≤1.50 | 0.46±0.08 |
| Ф3.5 | 4.0 0.2/-0.1 | 0.22±0.05 | ≤1.75 | 0.46±0.08 |
| Ф4.0 | 4.6 0.2/-0.1 | 0.22±0.05 | ≤2.00 | 0.46±0.08 |
| Ф4.5 | 5.0 0.2/-0.1 | 0.23±0.05 | ≤2.25 | 0.46±0.08 |
| Ф5.0 | 5.5 0.2/-0.1 | 0.25±0.05 | ≤2.50 | 0.50±0.08 |
| Ф6.0 | 6.5 0.2/-0.1 | 0.25±0.05 | ≤3.00 | 0.55±0.10 |
| Ф7.0 | 7.5 0.2/-0.1 | 0.25±0.05 | ≤3.50 | 0.55±0.10 |
| Ф8.0 | 8.5 0.3/-0.1 | 0.28±0.06 | ≤4.00 | 0.58±0.10 |
| Ф9.0 | 9.5 0.2/-0.1 | 0.28±0.06 | ≤4.50 | 0.58±0.10 |
| Ф10 | 10.5 0.3/-0.1 | 0.28±0.06 | ≤5.00 | 0.58±0.10 |
| Ф11 | 11.5 0.3/-0.1 | 0.28±0.06 | ≤5.50 | 0.58±0.10 |
| Ф12 | 12.5 0.3/-0.1 | 0.28±0.06 | ≤6.00 | 0.58±0.10 |
| Ф13 | 13.5 0.3/-0.1 | 0.28±0.06 | ≤6.50 | 0.58±0.10 |
| Ф14 | 14.5 0.3/-0.1 | 0.28±0.06 | ≤7.00 | 0.58±0.10 |
| Ф15 | 15.5 0.3/-0.1 | 0.28±0.06 | ≤7.50 | 0.58±0.10 |
| Ф16 | 16.5 0.3/-0.1 | 0.28±0.06 | ≤8.00 | 0.58±0.10 |
| Ф18 | 18.5 0.3/-0.1 | 0.32±0.08 | ≤9.00 | 0.68±0.10 |
| Ф20 | 20.6 0.5/-0.2 | 0.32±0.08 | ≤10.0 | 0.68±0.10 |
| Ф22 | 22.6 0.7/-0.2 | 0.35±0.08 | ≤11.0 | 0.72±0.12 |
| Ф25 | 25.6 0.7/-0.2 | 0.40±0.10 | ≤12.5 | 0.78±0.12 |
| Ф28 | 28.6 0.7/-0.2 | 0.40±0.10 | ≤14.0 | 0.78±0.12 |
| Ф30 | 30.6 0.7/-0.2 | 0.40±0.10 | ≤15.0 | 0.82±0.12 |
| Ф35 | 35.6 0.7/-0.2 | 0.45±0.10 | ≤17.5 | 0.92±0.12 |
| Ф40 | 41.0±0.5 | 0.50±0.12 | ≤20.0 | 1.00±0.15 |
| Ф50 | 51.0±1.0 | 0.55±0.15 | ≤25.0 | 1.10±0.15 |
| Ф60 | 60.5±1.0 | 0.60±0.15 | ≤30.0 | 1.25±0.20 |
| Ф70 | 71.0±1.0 | 0.60±0.15 | ≤35.0 | 1.25±0.20 |
| Ф80 | 81.0±1.0 | 0.60±0.15 | ≤40.0 | 1.25±0.20 |
| Ф90 | 91.0±1.0 | 0.60±0.15 | ≤45.0 | 1.25±0.20 |
| Ф100 | 101.0±1.0 | 0.60±0.15 | ≤50.0 | 1.25±0.20 |
Note: Other sizes and colors are available upon special request.
Customization
Dimension: Ф0.7-200mm, and we offer customizable services with special dimensions, colors and wall thicknesses.
| Test item | Test method | Specifications |
| UL operation temperature | UL224 | 125℃ |
| Longitudinal shrinkage | ASTM D2671 | -5%~ 5% |
| Tensile strength | ASTM D638 | ≥10.4MPa |
| Elongation at break | ASTM D638 | ≥200% |
| Aging in circulating-air oven | 158.0°C/168h | - |
| Tensile strength after heating aging | ASTM D638 | ≥7.3MPa |
| Elongation at break after heating aging | ASTM D638 | ≥100% |
| UL operation voltage | UL224 | 300V/600V |
| Volume resistivity | ASTM D2671 | ≥1.0x10¹² · cm |
| Dielectric Voltage | UL224 | 2500V(60s), no breakdown |
| Heat shock | UL224/250°C±3°C/4h | No dripping, cracking, or flowing |
| Concentricity | ASTM D2671 | ≥70% |
- This thin wall heat shrink tubing is halogen free and certified to be environmentally friendly by RoHS, REACH, and SONY standards.
- This thin wall heat shrink tubing is very flexible and features an excellent elasticity.
- The flame-retardant rank of this thin wall heat shrink tubing is compliant with UL224 VW-1and F-mark requirements.
- This thin wall standard heat shrink tubing is certified by UL125℃ (E180908).
