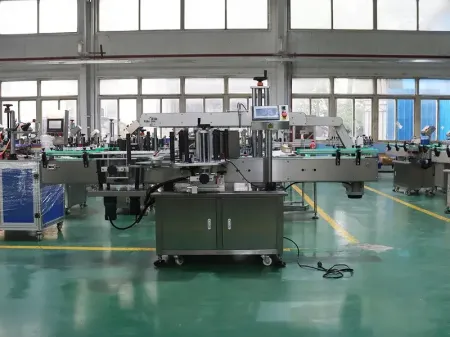

Automatic Front & Back Labeling Machine
Double-sided labeling machine for applying adhesive labels on both sides of round, square, flat, and oval bottles
The front & back labeling machine is built for precisely applying front and back labels to round bottles, square bottles, flat bottles, flasks in food, beverage, cosmetics and pharmaceutical industries. The two-sided labeling equipment is equipped with PLC control system and touch screen, achieving easy adjustment and stable operations, with labeling precision of ±1mm and speed up to 30-100 BPM. The built-in photoelectric detection and servo/stepper motor drive ensure the accurate labeling positioning and flat adherence. The labeler is constructed from SUS304 stainless steel and aluminum alloy and has passed the CE certification, is a great choice for improving both packaging efficiency and quality. It allows for quick adjustment according to the bottle height and label size, making it versatile for various packaging requirements.
| Model | |
| Capacity | 30–100BPM (adjustable, depending on bottle size and label size) |
| Accuracy | ±1 mm |
| Bottle Diameter | Φ25–120 mm, or customized |
| Bottle Height | 25–300 mm, or customized |
| Label Size | Height 10–150mm, Length 15–300mm (customized available) |
| Label Roll | I.D. Φ76mm, O.D. Φ320mm (Max.) |
| Max. Load | 500kg |
| Power | 1500W 220 VAC 1P |
- The core drive system is from well-known brand, like SIMENS PLC and servo motor, ensuring accurate and synchronized labeling on both sides. The labeling speed is up to 300 BPM.

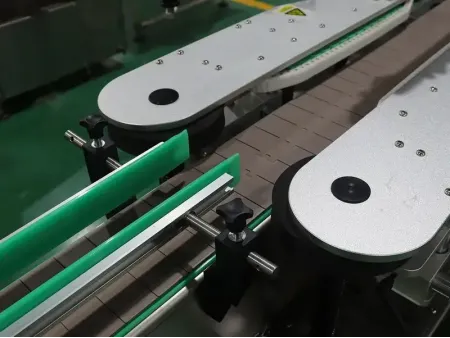

- Double-sided synchronous guiding chains automatically correct the bottle position, allowing for standalone use or seamless integration with other packaging equipment.
- The spring-loaded top-pressing mechanism ensures stable product conveying and automatically compensates for bottle height variances.
- Equipped with an automatic bottle separator to create precise spacing before guiding, ensuring stability during subsequent conveying and labeling.
- Features a dual label application mechanism that performs precise positioning followed by secondary press-on attachment to eliminate air bubbles, ensuring labels are wrinkle-free and firmly attached from end to end.
- Equipped with intelligent photoelectric tracking, enabling "no-object-no-label" control, automatic label correction, and detection to effectively prevent label waste and missing labels.
- Front & Back Labeling Machine for Round Bottles
- Front & Back Labeling Machine for Square Bottles
