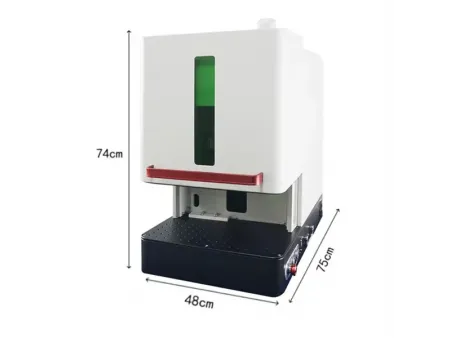

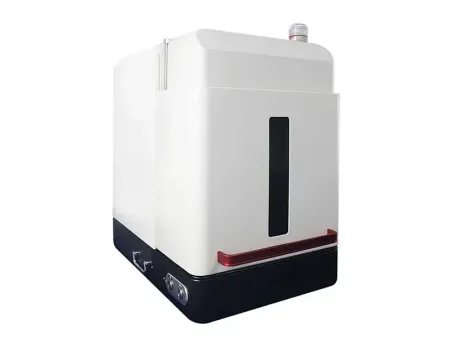

Sliding Door Mini Fiber Optic Laser Engraving Machine
- Laser wavelength: 1064nm
- Marking range: 75×75mm~100×100mm
- Output Power: 20 / 30 / 50W
- Repetition accuracy: 0.01mm
The full enclosed desktop fiber laser marking machine features an integrated sealed structure that effectively isolates dust, oil stains, and laser scattering, ensuring operations comply with international safety standards (such as CE, FDA). The compact body integrates an anti-vibration base, maintaining excellent marking precision and equipment stability even during continuous high-intensity operation. Furthermore, the fully enclosed design significantly reduces noise and energy consumption, enabling factories to achieve green, efficient, and intelligent marking solutions.
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE
| Model | |
| Power | 20W 30W 50W |
| Wavelength | 1064nm |
| Beam Quality | M2< 1.3 |
| Output Power | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | < ±1%rms |
| Focus Spot Diameter | < 0.01mm |
| Engraving Range | ≤150*150mm |
| Engraving Depth | 1.2mm |
| Engraving Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.1mm |
| Repeated Accuracy | ±0.003mm |
| System Operation | Windows10 |
| Cooling Mode | Air Cooling |
| Environment Temperature | 10ºC~35ºC |
| Environment Humidity | 20%-80% |
| Power Requirement | 110V~ 220V/50Hz~ 60Hz |
| Life of Laser Module | 100000Hrs |
Laser source
We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.
Galvo scanner
The 7110 model galvo scanner is characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Column
Enables electric lifting and lowering, accommodating marking for workpieces of different heights without manual adjustment, greatly improving overall work efficiency.
- Fiber laser
- Full enclosed laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Laptop
- Power cord
- USB connection cable
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
