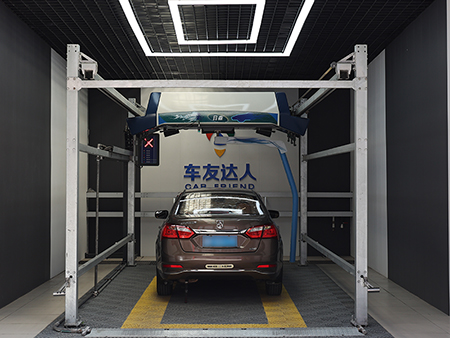

The HP-232 single-arm touchless car wash machine utilizes an ultrasonic intelligent detection system, ensuring 360° thorough cleaning without any blind spots. It boasts features such as chassis cleaning, vehicle body pre-wash, touch-free liquid cleaning, high-pressure rinsing, wax application and powerful drying, offering a comprehensive and fully automated intelligent touchless car washing solution.

Optional equipment for touch-free car wash machine: vacuum cleaners, floor mat cleaners, water recycling systems, air inflators, and powerful drying systems.

Features
  • Robust and minimalist exterior design
    The overall structure is sleek, with a well-designed carriage head for smooth movement, ensuring high equipment stability and safety. The materials are carefully selected to balance robustness and lightweight construction, emphasizing simplicity and durability.
  • Effective 360° rotating arm cleaning
    Computer-aided engineering (CAE) assisted simulation design optimizes the nozzle angles and poSITIons to prevent water flow collisions and maintain cleaning effectiveness. Intelligent vehicle distance estimation, along with safety collision protection, enables high-pressure water pre-wash, rinsing, and spraying of coating wax.
  • Strong corrosion resistance
    The frame steel adopts Q235 international standard profiles with a thickness of 4mm. Surface treatment includes acid pickling, phosphating, and hot-dip galvanizing, providing strong corrosion resistance. The corrosion resistance is rated at level 10 according to the SGS salt spray test report.
Parameters
Touchless car wash machine HP-232
Overall dimensions 6400*3310*3150mm
Installation size   7600*3500*3300mm
Car wash size 5300*2200*2050mm
Wash bay size 3500*1800*2300mm
Voltage 3-phase 380V 50Hz
Power Total power: 42kW, max. working power: 23kW
Water pump pressure 6-8MPa
Air source pressure 0.5-0.7MPa
Available car to wash Car/coach/business car within 7 seats
Car washing size 5300*2200*2050mm
Car wash capacity Normal washing:3min/car fine wash: 5min/car
Water consumption 208L/car
Power consumption 1.13kWh/car
Shampoo consumption 35-60ml/car
Wipe-free detergent shampoo consumption 30-50ml/car
Wax consumption 30-40ml/car
Frame Hot-dipped galvanized steel frame
Frequency converter Delta
Touch screen KINCO
Electric control system Delta
High pressure plunger pump TLD
Ultrasonic sensor P F
Photoelectric sensor Banner from the USA
Proximity sensor P F
Contactor Schneider
Metering pump Newdose
Main components

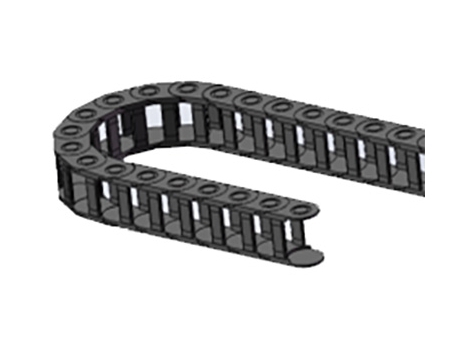

  • Igus® drag chain (Germany)

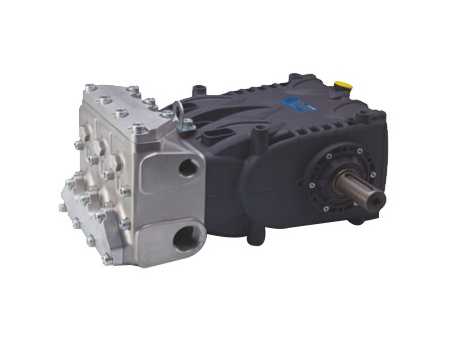

  • TLD high-pressure water pump (Sino-British)

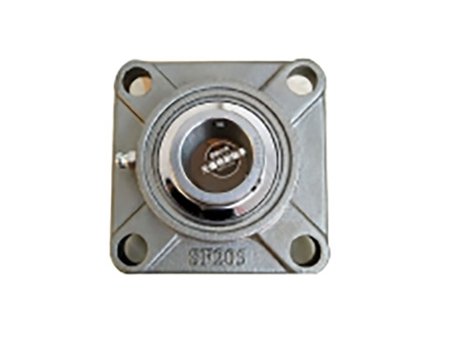

  • SK stainless steel bearings (Japan)
  • Stepper drive

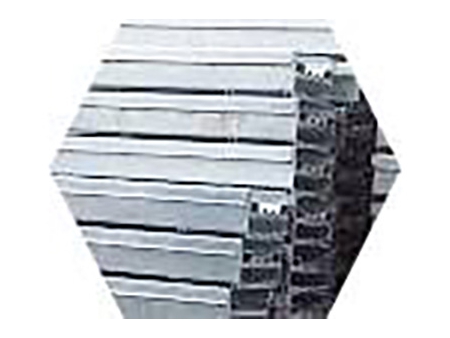

  • Hot-dip galvanized frame (4mm of wall thickness, Q235, salt spray level 10)

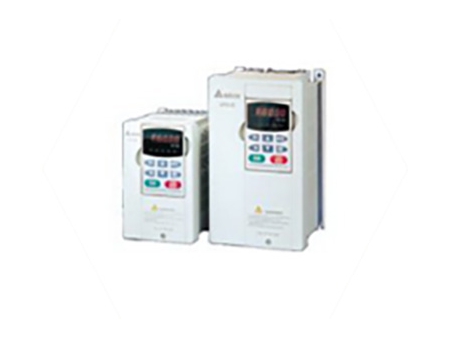

  • Delta inverter (Taiwan)

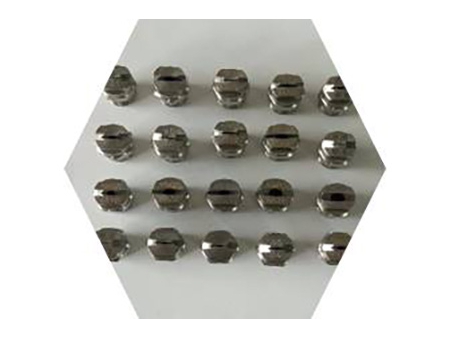

  • High-strength 416 stainless steel nozzle

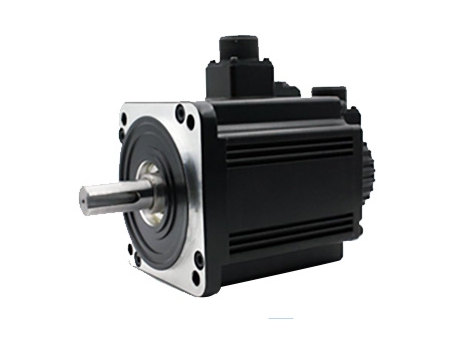

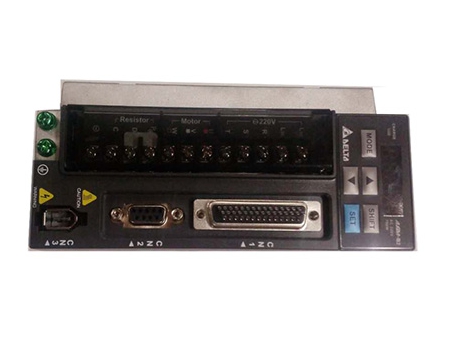

  • Servo motor
  • LCD display (washing modes, parking, status)
  • Baumer P F photoelectric sensor (Germany)
  • Baumer P F ultrasonic sensor (Germany)
  • TLD waterproof motor IP67 (Sino-British)
  • Omron relay (Japan)
  • Newdose liquid dosing pump (Italy)
    Can precisely control the dosage of the foam, rinse-free liquid, and coating wax. (Italy)
  • Schneider contactor (France)
Car washing process

Bottom washing — contour pre-washing — touch-free washing—high-pressure rinsing—foam spraying — high-pressure rinsing — wax spraying — powerful air drying

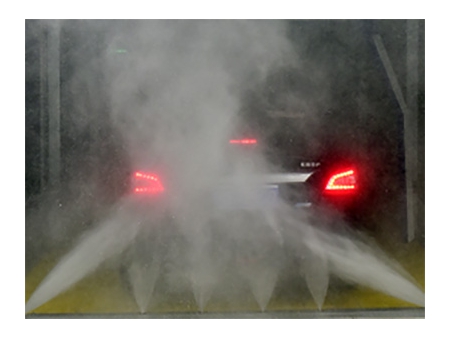

  • Bottom spray system

    The innovative bottom spray system with its powerful 90kg high-pressure rinse ensures a thorough clean of your vehicle's chassis and wheels.

    • Blasts away dirt and grime from the wheels, vehicle sides, and undercarriage with ease.
    • The dual lateral water jets focus on wheel sides and skirts while forward-facing jets target the vehicle's underside.
  • High-pressure rinsing

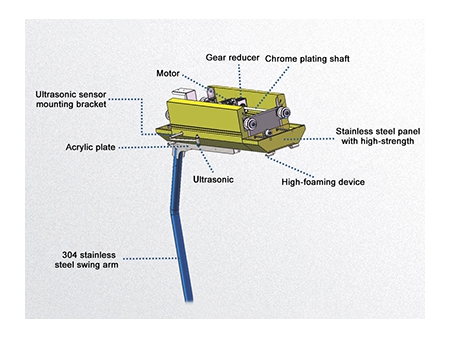

    • 360°Rotating arm Equipped with multiple spray nozzles to complete pre-washing, high-pressure rinsing, and wax spraying of the car body. Each cycle is achieved in only 27 seconds, speeding up cleaning without skimping on the quality of the finish.
    • Ultrasonic sensor systemThrough the ultrasonic sensor system, the size of the car body and the parking distance can be accurately located, and the rearview mirror can be repeatedly cleaned.
      Ultrasonic detection can eliminate water mist interference, effectively avoid damage to the car, and make cleaning safer.
    • Optimized water flowThe 7-shaped swing arm adopts advanced design, which can optimize the impact of water flow in the horizontal and vertical directions to the greatest extent, achieving a better cleaning effect.
  • Touch-free car wash

    • Automatic proportioning and spraying The liquid is automatically proportioned and sprayed, with 20-50ml used per car. The metering and proportioning system precisely controls every cost.

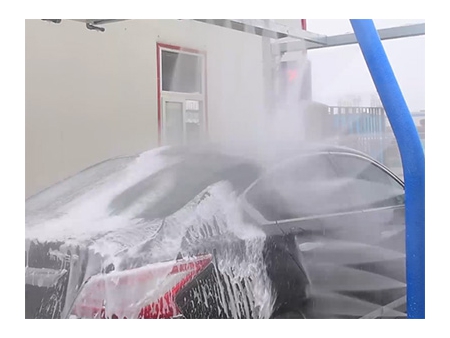

    • Water-liquid automatic mixing and high-pressure spraying Through these steps, micro-particle water mist is formed, which is sprayed and covers the car body surface. It can more thoroughly contact the dirt, including the gaps of the car body, and can penetrate evenly.

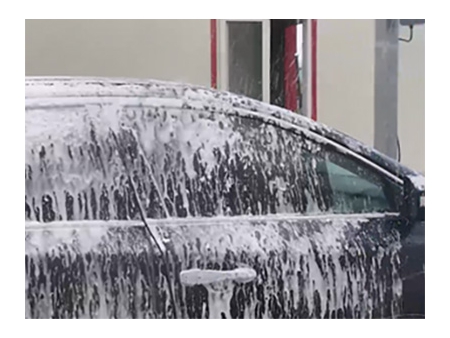

  • Foam spraying

    • Dust and stains cleaningHigh-foaming, polishing and nourishing car wash liquid can effectively remove dust, dirt and other stains from the car body.
    • Car exterior maintenanceAdopts a wide-spectrum active ion agent for conditioning and gloss enhancement.
    • Spotless polishingAchieves both polishing and protection simultaneously during the cleaning process, resulting in an even shinier paint surface.
  • Wax spraying

    • Paint protectionThe wax application forms a protective layer on the vehicle's paint surface, which later acts as a durable protective film.
    • Shiny finishIn addition to protecting against acid rain, pollution, and UV damage, the wax also boots the car's paint brightness.
  • Air drying system

    Fast drying is made possible with 4 powerful built-in air dryers as well as 4 air outlets, which makes use of leading drying technology to guarantee at least 80% drying effect.
