Key Duplicator 100-G3
Request a Quote
- Alloy cutters and tracer pins provide extended service life.

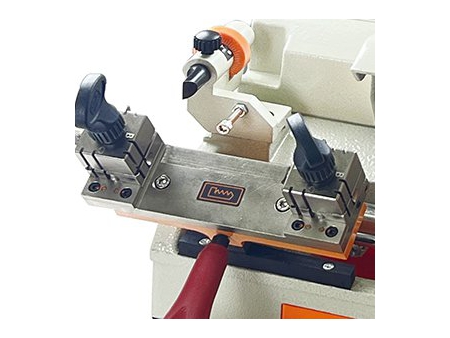

- The widest spacing between the two sets of vise jaws ever seen, accommodating long blade keys as well as large bow keys.
- The reversible vise jaws on the left provide 4 clamping positions to securely clamp a wide variety of keys, while the right jaw set offers 2 clamping positions: one at the top, the other at the bottom. Vise jaws on the right also come with auxiliary clamps for holding down short crescent keys and tubular keys.

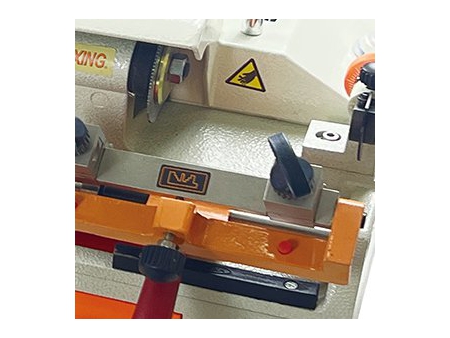

- Tracer point (or tracer pin) allows fine-tuning of cutter position so that the cutter can make precise cuts according to the varying cut depths.
Technical Specifications
| Product Name | 100-G3 |
| Code | 100-G3 |
| Dimensions | 51X41X32(CM) |
| Net Weight | 30KG |
| Cutting Tool No. | Left cutting tool: NO.00141C.C Right cutting tool: NO.0023CC.C |
| Voltage | 220V/110V |
| Frequency | 50HZ/60HZ |
| Power | 180W |
