CYTJ45D hydraulic drilling jumbo has been engineered for various mines and small sized drifts & tunnels, with drilling coverage range of 2000x2000-2800x2800mm (WxL).

The drilling machinery comes with fully hydraulic rock drill system and anti-jamming function, allowing for quick drilling speed with low consumption. The drilling jumbo is featured by compact structure and great mobility. In addition, large quantities of dust will be produced during drilling. Huatai adopts efficient dust control measure. The water is used for hole flushing during rock drilling, minizing dust generation. This provides a comfortable and safe working environment.

Standard Configurations
  • Drifter RC1200/14U
  • Boom specially designed for small size cross section
  • Anti-jamming function
  • Chassis with Yuchai 4-cylinder diesel engine
  • Feed
  • Control system
Technical Specifications
Overall dimensions
(L×W×H)
9000×1380×1770(2280)mm
Drifter RC1200, 14U
Power (drifter) 14 kW / 14 kW
Total length (feed) 4087 / 4820 mm
Drill rod length 3090 / 3090 mm
Rod type R28-B28-R32 / R32-B35-R38
Hole depth 2770 / 2770 mm
Min. hole diameter ⌀ 43 mm / 45 mm
Feed force 13 / 13 kN
Boom extension 1250 mm
Boom (lift/tilt angle) 60°
Boom swing angle ±35°
Main motor power 55 kW
Rated voltage 380V (customized)
Gradeability 14°
Overall weight 10.3 T
Cable length 70 m
Outside Dimensions of Jombo Drill with 3090 Feed - Side View
Turning Radius

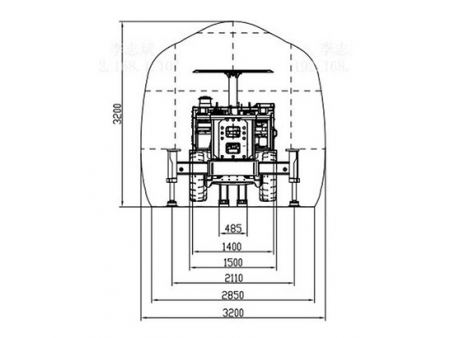

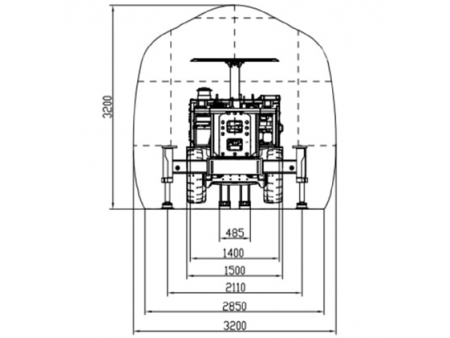

Cross Section
