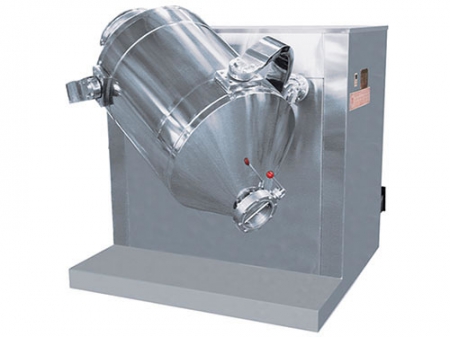

Rotary Drum Mixer
Request a Quote
The rotary drum mixer performs complex movements so as to complete uniform mixing. This mixing equipment is highly versatile and suitable for a variety of materials through its disseminating, agglomerating and mixing functions
Parameters
| Specification | SYH-100 | SYH-200 | SYH-800 | SYH-1200 | SYH-1500 | SYH-2000 |
| volume of barrel(L) | 100 | 200 | 800 | 1200 | 1500 | 2000 |
| charge volume (L) | 90 | 180 | 720 | 1080 | 1350 | 1800 |
| charge weight(kg) | 30-54 | 50-108 | 200-432 | 300-648 | 400-810 | 500-1080 |
| rotation speed of main shaft(r/min) | 0-20 | 0-15 | 0-10 | 0-9 | 0-9 | 0-8 |
| motor power(Kw) | 1.5 | 2.2 | 7.5 | 11 | 15 | 18.5 |
| size LxWxH(mm) | 1250x1800 x1550 | 1450x2000 x1550 | 2100x2650 x2000 | 2000x3000 x2260 | 2300x3200 x2500 | 2500x3600 x2800 |
| weight(kg) | 800 | 1200 | 1700 | 2000 | 2400 | 3000 |
