Clinching Press (4-Ton C-Frame Bench Press)
Request a Quote
- Clamping Force 38kN
- Force Stroke 5-52mm
- Daylight 200mm
The CEB series clinching bench press clinching equipment is widely used in industrial fields requiring precision press-fitting and clinching. It serves multiple industries including automotive, home appliances, HVAC, sheet metal, electrical, elevators, and furniture hardware. Its highly adaptable design allows it to function as a stationary bench-top press, a portable clinching unit, or as a standalone cell within a fully automated production line.

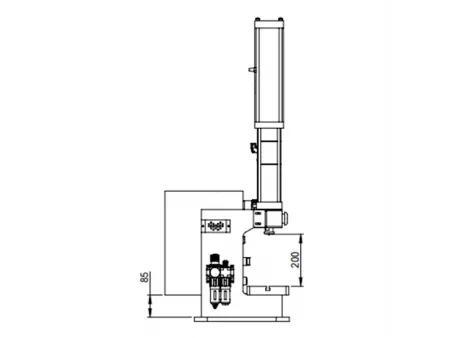

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-slot | ||
| kN | T | |||||||||
| CEB | 4 | 38.2 | 3.82 | 500 | 450 | 220 | 160 | 100 | 300 | 12 |
System Configuration

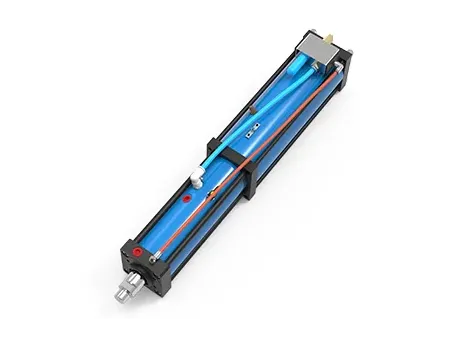

- Pneumohydraulic Cylinder
- CEB Press Frame
- STE Safety Control System
Key Advantages
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
