V-Shape Mixer

Request a Quote

View All: http://pharmacymachinery.com/10-4-v-type-mixer.html

V type mixer is primarily used for mixing dry powder or granule materials in chemical, food, pharmaceutical and other industries. It is characterized by unique structure, high mixing power, no dead corner, polished surface, attractive appearance, uniform mixing, wide application as well as stainless steel made barrel.

Main application

This mixer is specifically designed to evenly blend target materials in powder or paste form.
It is particularly effective for mixing free-flowing powders and granules, delivering more pronounced results.

Specifications

Model	GHJ-50V	GHJ-100V	GHJ-200V	GHJ-300V	GHJ-500V	GHJ-1000V
Max. Working Capacity (kg)	20	40	80	100	200	400
Min. Mixing Time	5-20	5-20	5-20	5-20	10-30	10-30
Volume (m3)	0.05	0.1	0.2	0.3	0.5	1.0
Rotate speed of Mixing Drum (rpm)	0-20	0-15	0-15	0-12	0-12	0-12
Motor Power (kW)	0.75	1.1	1.5	1.5	2.2	4
Total Height of Rotation	1150mm	1520mm	1800mm	2100mm	2200mm	2840mm
Oversize (L ×W×H) (mm)	1250×45×1060	1620×500×1480	1800×600×1850	1900×650×1850	2500×800×2050	2850×1050×2450
Weight (kg)	160	220	280	450	650	950

Characteristics

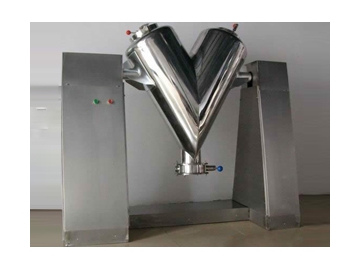

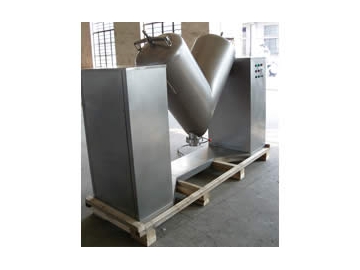

The mixer features a V-shaped mixing barrel that ensures effective cross-mixing and multi-position rotary mixing.
It has a special design that provides a better mixing effect, with no dead angles, ensuring a uniform mix.
The discharge mechanism uses a rotating butterfly valve, which is not only easy to clean but also convenient for loading.

Structure:

The mixer has a V-shaped mixing barrel, left and right supports, transmission systems, and an electrical control system.
The brackets are made from split steel and assembled with an external stainless steel panel.
The transmission systems are equipped with a standard motor driving a worm gear reducer, which in turn drives the mixing barrel. This reversible system has a self-locking feature, allowing the mixing barrel to pause at any position. This is especially beneficial for complete discharge and makes cleaning convenient.
