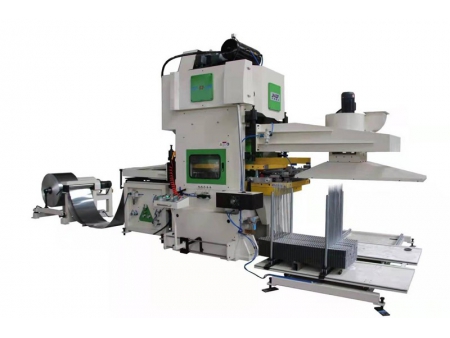

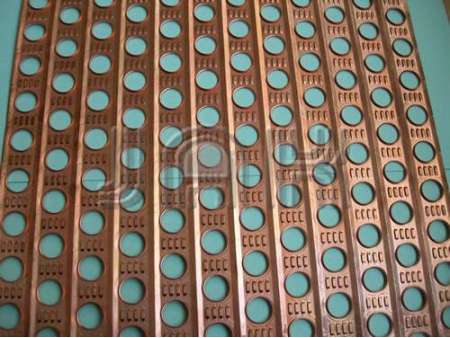

An automatic fin press line consists of an auto decoiler, lubricant oil applying device, high-speed punch press, and fin unloading & stacking device, which is suitable for processing aluminum or copper fin plates.

• Single-head aluminum foil decoiler allows for active decoiling and phototube control.
• Oil-through device equipped with an oil leveler
• Punching press with high-precision die and PLC-controlled pulling device
• In-die automatic lubrication device with waste oil collecting device
• Pneumatic fin sucking device
• Movable double-station fin collection device
• PLC control system displays the punching angle, stroke, hole number, stacking quantity, etc.

• Nominal force450kN
• Ram stroke40mm
• SPM (Stroke for minute)120~200 / (150~250) per minute
• Max. Die height210~270mm
• Throat depth330mm
• Slide bottom dimension300 x400mm
• Size of working table660 x 850mm
• Motor power5.5kW
• Fin collecting heightMax. 650mm
• Sucking lengthMax. 1200mm
• Size of aluminum foilOD 850, ID 75mm, max. width 330mm
• Compressed air0.6MPa, 0.4m3/h
• Whole line dimension8 x 2m
• Whole line weight8000kg

• Nominal force630kN
• Ram stroke40mm
• SPM (Stroke for minute)150~300 per minute
• Max. Die height260~310mm
• Min. Die height rise80mm
• Slide bottom dimension1100 x890mm
• Size of working table1600 x 900x115mm
• Main motor power11kW
• Total power19kW (max.)
• Fin collecting heightMax. 720mm
• Sucking lengthMax. 1800mm
• Size of aluminum foilOD 1000, ID 150mm, max. width 560mm
• Compressed air0.6MPa, 0.4m3/h
• Whole line dimension10 x 3m
• Whole line weight12000kg
