Evaporator Core Assembling Machine
Request a Quote
Evaporator Core Assembling Machine

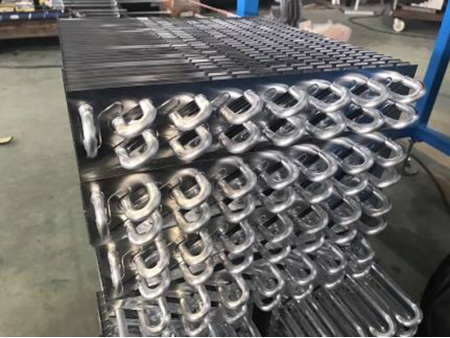

This evaporator core assembling machine is specially designed for assembling refrigerator evaporator cores and deep freezer evaporator cores full automatically.
The machine will automatically select fins, insert fins and expand tubes, thus finish a core for refrigerator or deep freezer.
- Hole pitch 38.1mm
- Row pitch 22mm
- Hydraulic pressure 5~7MPa
- Machine weight About 1500kg
Technical Data
- Applicable evaporator corerefrigerator, deep freezer
- Applicable evaporator core length100~600mm
- Applicable aluminum tube diameterΦ8mm
- Number of U tube rows2 / 3
- Aluminum fin width50mm (60mm) / 75mm
- Max. hole numbers in each row14 / 7
- Hole pitch38.1mm
- Row pitch22mm
- Fin stacking methodServo motor driving, pneumatic absorbing
- Fin stacking speed2~3 seconds per fin
- Tube inserting methodManually pre-loaded, hydraulic pushing
- Tube inserting speed400mm/s
- Hydraulic pump motor power5HP
- Hydraulic pressure5~7MPa
- Machine dimensionAbout 10 x 1.2 x 1.5m
- Machine weightAbout 1500kg
