Laminations Core Welding Machine
Request a Quote

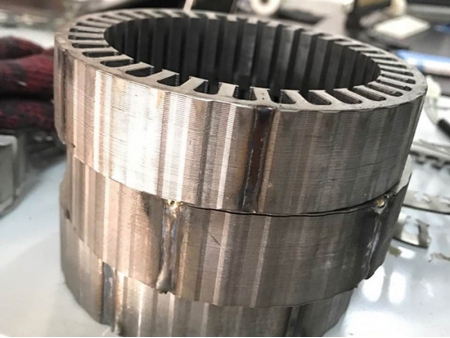

This laminations core welding machine is suitable for welding stacked stator lamination cores.
There are six welding torches that can freely adjustable, capable for both straight seam and inclined seam welding.
Both welding length and inclination are controlled by servo motors, simple and convenient.
Only core loading and unloading are manual, other operations are automatic.
Technical Data
- Main cylinder force250kN
- Welding torch stroke300mm
- Mold-closing cylinder stroke450mm
- Effective worktable dimension500 x 700mm
- Applicable max. stator core height200mm (customized)
- Clamping tool changing speed20 min
- Hydraulic station motor power5.5kW
