Copper Tube Flaring & Cutting Machine
This copper tube flaring & cutting machine combines straightening and end flaring, offering decoiling, straightening, burrless cutting and one end flaring, widely used for copper/aluminum tube processing.
Main Features
- Servo feeding, stable and high re-positioning precision
- One time processing four pieces, high efficient
- Adopting pull-apart technology, less tube end ID reduction ratio
- Pneumatic flaring
- PLC control, high automation—auto feed, auto flaring, auto cut, auto unload, auto alarm.
Technical Data
- Suitable copper/aluminum tubeCoil, TP1/2 (M/M2)
- Suitable tube diameter rangeФ4.0~10.0mm
- Suitable tube wall thicknessMax. 0.7mm
- Cutting length rangeMin. 100m; no limit on max. length
- Pay-off devicePassive, for four tubes
- Cutting stationTwo stations (each for two tubes)
- Cutting speed6 cuts per minute (@L=600mm)*
- Feeding speedMax. 0.5m/s
- Max. takt time7 seconds
- One-time feeding strokeMax. 800mm
- Straightness tolerance≤2‰
- Cut-to-length tolerance≤0.3mm /1000mm
- Length difference between two tubes≤0.5mm
- Tube end ID reduction ratiof < 25%*
- Out-of-roundness of finished endLess than 1% of tube diameter
- Coaxiality between finished end and tube centerLess than 0.1mm
- Max. processing depth errorLess than /-0.5mm
- Compressed air0.5-0.7MPa
- Total electric consumption6kW
* 1- When cutting length is less than 100mm, there will be no pre-stretching function.

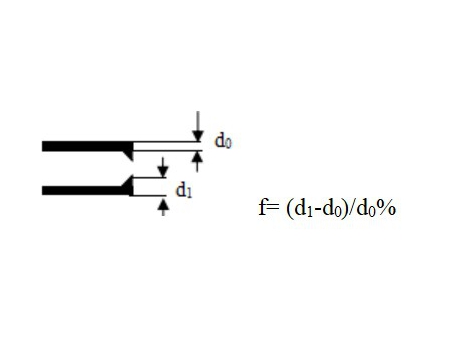

* 2- Tube end ID reduction ratio means:
