Copper Tube End Forming Machine

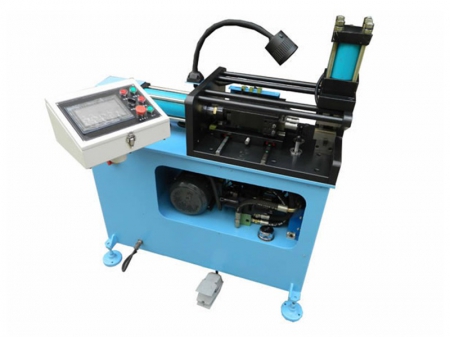

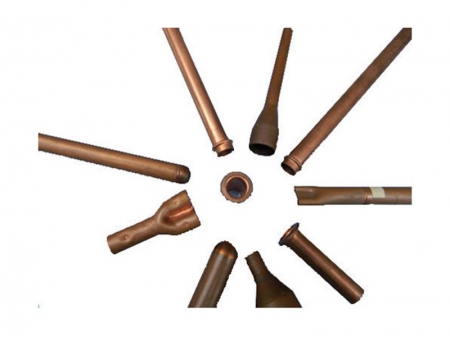

The tube end forming machine is specially offered for tube end expanding, reducing, tapering, bellmouth forming, positioning ring forming, and so on. The pipe processed with our pipe end forming machine is generally used in the industry such as air condition, heater, and automobile. The tube end forming equipment can be designed with single station, three stations, four stations, five stations, and six stations. Customer can choose the tube processing machine based on actual demand.
We can design and configure different types of tube end former according to your actual requirements:
- Spinning Type End Former
- Direct-pushing & Spinning Integrated End Former
- Multi-station End Forming Machine with Auto Loading
Technical Parameters
- Model: 3-station Copper Tube End Forming Machine
- Applicable copper tube diameter: Φ6-12mm
- Applicable copper tube wall thickness: 0.5-0.75mm
- Suitable copper tube length: Max. 1.5m (bellmouth: 3.5-4m)
- Coaxiality between formed end and tube center: Less than 0.1mm
- Out-of-roundness: Less than 10% of tube diameter
- Repositioning accuracy: Less than 0.15mm
- Duration of single action: 3-5 seconds
Typical Expanding/Reduced Diameter Copper Tube Sizes
| Tube Diameter×Wall Thickness | Formed Size |
| Φ12×0.6mm | 90° bellmouth, Φ15.1mm |
| Φ6×0.5mm | 90° bellmouth, Φ9.2mm |
| Φ12×0.75mm | Φ12.7mm (0~-0.15mm) |
| Φ9.53×0.75mm | Φ10mm(0~-0.15mm) |
| Φ8×0.75mm | Φ9.53mm(0~-0.15mm) |
| Φ7×0.75mm | Φ9.4mm(0~-0.15mm) |
| Φ10×0.75mm | Φ9.53mm(0~-0.15mm) |
| Φ10×0.75mm | Φ12.7mm(0~-0.15mm) |
