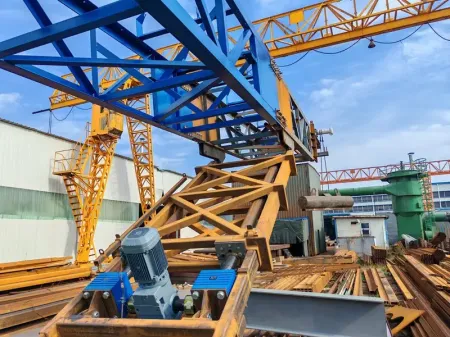

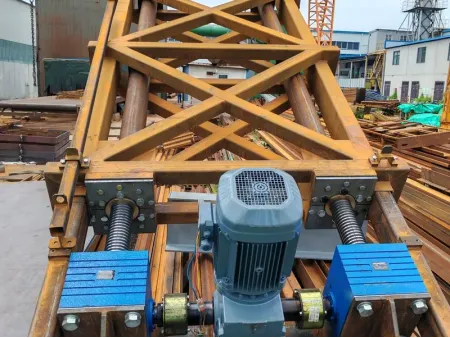

Adjustable / Fixed Angle Feeders
Truss frame conveyor for long-distance conveying of aggregate, sand and ores
- Fixed or adjustable angle configurations to suit diverse operating conditions.
- Anti-spillage design to reduce material loss and onsite contamination.
- Customizable inlets and outlets for high versatility.
- Belt-tracking design to prevent belt misalignment and minimize material loss.
| Belt Width (mm) | 500-2400 |
| Belt Speed (m/s) | 0-4.0 |
| Conveying Capacity (t/h) | 0-4000 |
| Conveyor Length (m) | 0-40 |
| Inclination Angle (°) | 0-18°(adjustable) |
A variety of optional components are available, including rain cover, metal separator, walk way, lighting equipment, dust suppression and removal, generator set, monitoring system, telescopic chute, etc.
-
Walk Way
Features a modular design for easy access and easy installation.
-
Monitoring System
Enables remote, real-time monitoring of on-site equipment operations, simplifying data checks and reducing safety management expenses.
-
Electro-Magnetic Separator
Features a compact design for easy installation, with a powerful magnetic force that effectively captures magnetic debris, safeguarding the rubber belt.
-
Lighting Facility
Equipped at both loading and discharging points, this lighting setup is designed for night operations, offering high efficiency, energy savings, and longevity.
-
Rain Cover
Designed to prevent rainwater infiltration and dust escape, ensuring the stacker remains operational even on rainy days.
-
Walkway Safety Railing
This project features an adjustable-angle feed conveyor system customized for a Russian client in 2024, consisting of 12 mobile belt conveyors.
- Conveying Capacity: 1050 t/h
- Total Length: 39 m
- Material Density: 1.65 t/m³
- Lift Height: 3.9–7.8 m
- Belt Speed: 2.5 m/s
- Inclination Angle: 4.5°–12°
- Total Power: 75 kW
