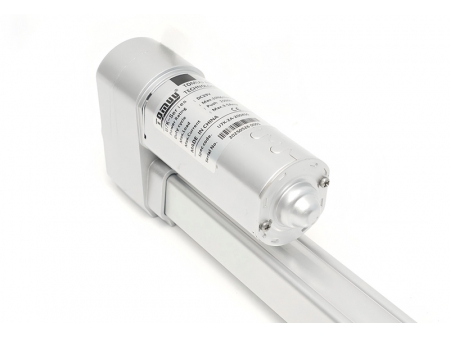

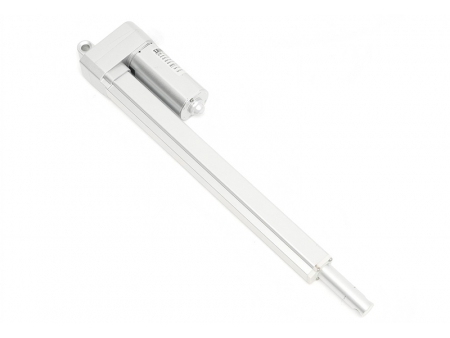

The U7 model small linear actuator is a small-sized industrial linear actuator, which is applicable for Christmas trees, vehicle trunks, and industrial appliances. Its longest stroke is more than 1m, and the smallest installation distance is 108mm stroke. These linear actuators are small, waterproof and easy to install.
The inner tube, outer tube and gear box are made of aluminum alloy, and the gear is manufactured using a powder metallurgy process.
Parameters- Voltage: 12/24V DC
- Max load capacity: 2000N (push)
- No-load velocity: 5~60mm/s
- Full-load velocity: 4~45mm/s
- Duty cycle：25%
- Waterproof class：IP65
- Noise level: less than 65dB
- Temperature：-40℃ ~ 70℃
Linear Actuators U7 Overview Linear Actuators U7 Demonstration
