DFB Pigtailed Laser Diode Device
The DFB pigtailed laser diode device is designed on the basis of FP laser by adding a grating filter to it. Such addition enables the equipment to achieve a single longitudinal mode operation. This series of product has the advantage of large output power, small beam divergence, narrow spectrum, and high modulation rate. It is suitable for long-distance communications and finds wide use in the CATV system, GSM or CDMA transmission system, and other analog modulation systems.

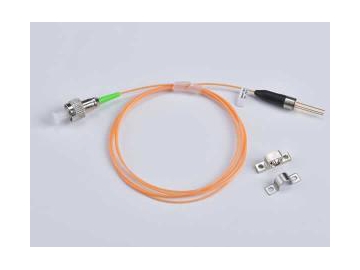

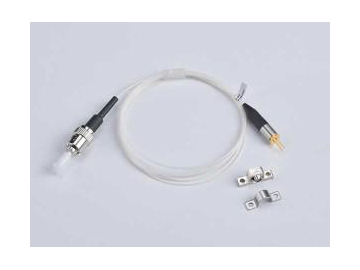

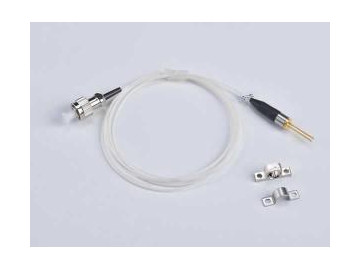

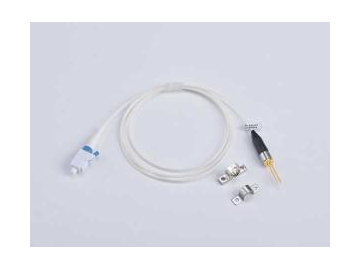

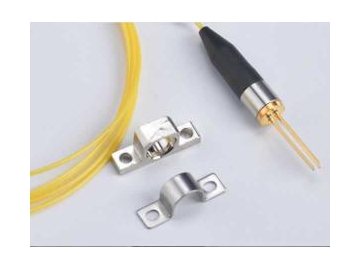

The DFB pigtailed laser diode equipment includes one 1310nm or 1550nm MQW-DFB chip and 4 pins. It is supplied with single-mode fiber-optic output, low operating current, and high output power between 1MW and 10MW. The equipment delivers low noise at high linear output power. It also can be fitted with SC/APC or FC/APC connector.
(If customers would like to know more about the details, please click here to download the following file.)
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 1 | - | 4 | mW | Ith 20mA |
| Slope Efficiency | SE | 0.2 | mW/mA | |||
| Threshold Current | Ith | 10 | 15 | mA | - | |
| Forward Voltage Drop | Vop | - | 1.0 | 1.2 | V | CW, Ith 20mA |
| Cent Wavelength | λc | 1300 | 1310 | 1320 | nm | - |
| Spectrum Width(-3dB) | Δλ | - | 0.5 | 1 | nm | Ith 20mA |
| Side-mode Suppression Ratio | SMSR | 35 | - | dB | - | |
| Bandwidth | Bw | 2.5 | GHz | |||
| Monitor Current | Im | 100 | 900 | uA | CW, Ith 20mA | |
| Dark Current of Monitor | Id | - | - | 100 | nA | 5V |
| Optical Isolation(Single stage) | ISO | 35 | 40 | - | dB | |
| Optical Isolation(Double stage) | ISO | 45 | 50 | - | dB | |
| Return loss | RL | -45 | dB | |||
| Analog Characteristic index | ||||||
| Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | - |
| RF Bandpass Flatness | BF | ±1.5 | dB | |||
| Third-order Distortion | IMD3 | - | -55 | - | dBc | |
| Carrier Noise Ratio | CNR | 51 | - | - | dB | Note 1 |
| Composite Second Order | CSO | - | - | -57 | dBc | |
| Composite Triple Beat | CTB | - | - | -65 | dBc | |
(If customers would like to know more about the details, please click here to download the followingfile.)

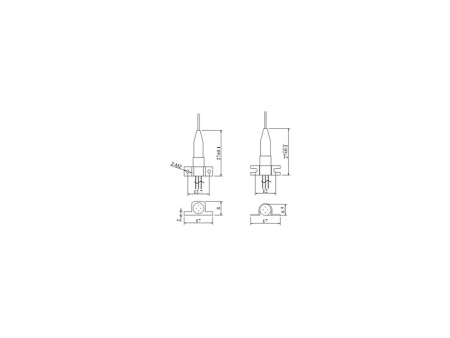

Drawing
(If customers would like to know more about the details, please click here to download the following file.)
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 6 | 8 | 10 | mW | Ith 40mA |
| Slope Efficiency | SE | 0.15 | 0.2 | mW/mA | ||
| Threshold Current | Ith | 10 | 15 | mA | - | |
| Operating Current | Iop | 50 | 70 | mA | ||
| Forward Voltage Drop | Vop | - | 1.0 | 1.2 | V | CW, Ith 40mA |
| Cent Wavelength | λc | 1540 | 1550 | 1560 | nm | - |
| Spectrum Width(-3dB) | Δλ | - | 0.5 | 1 | nm | Ith 40mA |
| Side-mode Suppression Ratio | SMSR | 35 | - | dB | - | |
| Bandwidth | Bw | 2.5 | GHz | |||
| Monitor Current | Im | 100 | 1200 | uA | CW, Ith 40mA | |
| Dark Current of Monitor | Id | - | - | 100 | nA | 5V |
| Optical Isolation(Single stage) | ISO | 35 | 40 | - | dB | |
| Optical Isolation(Double stage) | ISO | 45 | 50 | - | dB | |
| Return loss | RL | -45 | dB | |||
| Analog Characteristic index | ||||||
| Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | - |
| RF Bandpass Flatness | BF | ±1.5 | dB | |||
| Third-order Distortion | IMD3 | - | -55 | - | dBc | |
| Carrier Noise Ratio | CNR | 51 | - | - | dB | Note 1 |
| Composite Second Order | CSO | - | - | -57 | dBc | |
| Composite Triple Beat | CTB | - | - | -65 | dBc | |
(If customers would like to know more about the details, please click here to download the following file.)
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 6 | 8 | 10 | mW | Ith 40mA |
| Slope Efficiency | SE | 0.15 | 0.2 | mW/mA | ||
| Threshold Current | Ith | 10 | 15 | mA | - | |
| Operating Current | Iop | 50 | 70 | mA | ||
| Forward Voltage Drop | Vop | - | 1.0 | 1.2 | V | CW, Ith 40mA |
| Cent Wavelength | λc | 1540 | 1550 | 1560 | nm | - |
| Spectrum Width(-3dB) | Δλ | - | 0.5 | 1 | nm | Ith 40mA |
| Side-mode Suppression Ratio | SMSR | 35 | - | dB | - | |
| Bandwidth | Bw | 2.5 | GHz | |||
| Monitor Current | Im | 100 | 1200 | uA | CW, Ith 40mA | |
| Dark Current of Monitor | Id | - | - | 100 | nA | 5V |
| Optical Isolation(Single stage) | ISO | 35 | 40 | - | dB | |
| Optical Isolation(Double stage) | ISO | 45 | 50 | - | dB | |
| Return loss | RL | -45 | dB | |||
| Analog Characteristic index | ||||||
| Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | - |
| RF Bandpass Flatness | BF | ±1.5 | dB | |||
| Third-order Distortion | IMD3 | - | -55 | - | dBc | |
| Carrier Noise Ratio | CNR | 51 | - | - | dB | Note 1 |
| Composite Second Order | CSO | - | - | -57 | dBc | |
| Composite Triple Beat | CTB | - | - | -65 | dBc | |
