High Speed Magnetic Suspension Vacuum Pump

High Speed Magnetic Suspension Vacuum Pump
High Speed Magnetic Suspension Vacuum Pump
Request a Quote
Vacuum Pump

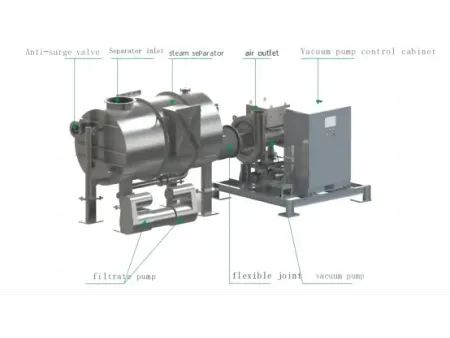

High speed magnetic suspension vacuum pump operates with an impeller rotating at high speeds, drawing in moist air and compressing it rapidly. In single-stage turbine vacuum pumps, air is compressed by a single impeller and then expelled through a diffuser and volute casing. Multi-stage turbine vacuum pumps utilize multiple impellers to sequentially compress the air, achieving higher vacuum levels. Depending on the level of air intake, different degrees of vacuum can be produced.

High speed magnetic suspension vacuum pump incorporates innovative technologies such as magnetic bearings, high-speed permanent magnet motors, high-frequency vector variable frequency technology, and efficient fluid mechanics. It is an intelligent turbomachinery device that offers energy savings of 30-70% and water savings of 100% compared to conventional equipment. It is extensively used in the paper industry, particularly for energy-saving retrofits in vacuum dewatering processes.

  • Power

    11-184kW

  • Air flow

    14-184m³/min

  • Vacuum degree

    10-70kPa

Technical Data
Model Vacuum Degree (kpa) Air Flow (m³/min) Power (kW)
XRC11 10-70 14 11
XRC15 20 15
XRC18.5 24 18.5
XRC45 45 45
XRC55 60 60
XRC75 92 92
XRC90 126 126
XRC110 150 150
XRC150 184 184
For detailed information, please refer to
