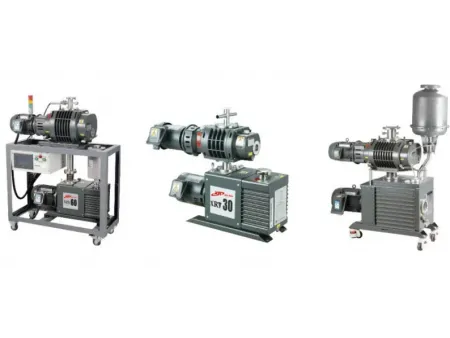

Roots Vacuum Pump

Roots Vacuum Pump
Roots Vacuum Pump
Request a Quote
Vacuum Pump

Roots vacuum pump is equipped with two synchronously rotating rotors, either bi-lobe or multi-lobe, which maintain a specific clearance from each other and from the inner wall of the pump casing. It is classified as a rotary positive displacement vacuum pump, often used as a mechanical booster pump in various applications.

Applications

The multi-stage centrifugal blowers are extensively used in various applications that require air delivery. These include providing blast air for smelting furnaces and iron-making furnaces, supporting coal washing jig machines, aiding in mine flotation processes, aerating sewage in wastewater treatment, and gas-making in chemical processing. Roots vacuum pump is also suitable for conveying other special gases.

Features
  • Oil-Free Intermediate Sealing: Employs multiple oil-free intermediate sealing methods to ensure a highly clean vacuum environment inside the rotor chamber.
  • Guarantees excellent geometric symmetry of the rotors, enhancing performance and manufacturing process.
  • Operates with low noise and has a high lifespan.
  • The pump's rotors are made from aluminum alloy, which provides rapid heat dissipation, corrosion resistance, and energy efficiency.
  • Ensures long-term stable operation without oil leaks utilizing a special shaft sealing method.
  • Roots vacuum pump’s design is space-efficient, easy to install, and light, making it ideal for various industrial settings.
Technical Data XRJ Series Direct Connection Roots Vacuum Pump
Model XRJ100Z XRJ70L XRJ150L XRJ300L XRJ600L
Pumping Rate 50HZ m³h (L/min) 95 280(4670) 500(8330) 1000(16667) 2000(33330)
60HZ m³h (L/min) 108 330(5500) 600(10000) 1200(20000) 2400(40000)
Max. Allowable Pressure Difference 50HZ Pa 4.0×103 7.3×103 5.6×103
60HZ Pa 3.3×103 6.0×103 4.7×103
Motor Power (2 poles) Three phase kW 0.4 0.75 2.2 3.7 7.5
Voltage Three phase V 380,400 380,400
Amount of Oil Required L 0.4 0.8 1.6 2 4
Cooling Water Flow L/min - 2 2 3 3
Pressure Differential MPa - 0.1
Water temperature - 5~30 5~30 5~30 5~30
Weight kg 30 51 80 115 227
XRJ Series Hydraulic Coupling Roots Vacuum Pump
Model XRJ600LC XRJ1200LC
Pumping Rate 50HZ m³h (L/min) 2590 4140
60HZ m³h (L/min) 3110 4985
Motor Power (2 poles) Kw 11
Cooling Water Flow L/min 6
Pressure MPa 0.2~0.6
Water Temperature 5~35
Weight - 350 420
Air Inlet - ISO160 ISO250
Air Outlet ISO100
