Fire Protection Grooved End Gate Valve

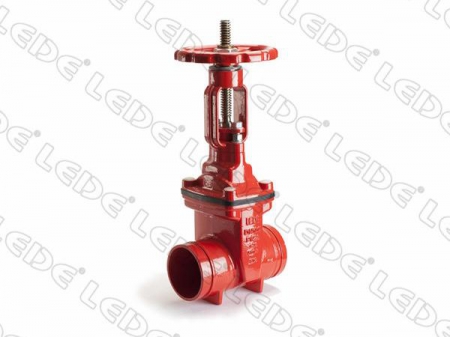

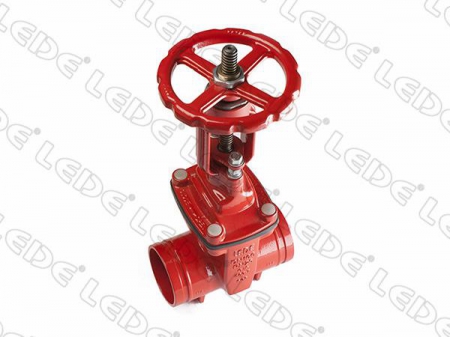

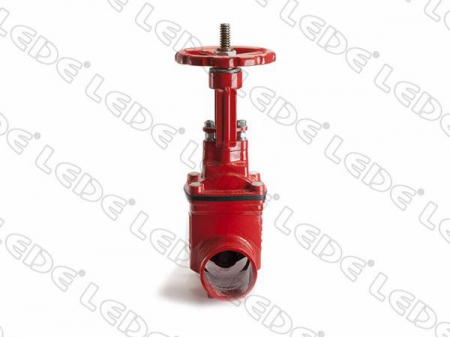

Resilient Seated OS&Y Gate Valve Grooved End
Features
1. The OS&Y resilient seated gate valve is one of our newest products, and features a simple design and easy maintenance.
2. The resilient seated valve features a low torque and high pressure. The pressure can reach PN25 under a third of the standard torque.
3. When the valve is fully opened, the upper sealing parts can be replaced under a water supply.
4. The gate valve is a straight channel. When the valve is fully opened, the disc will completely leave the channel, leaving behind no dirt, and decreasing the flow resistance.
5. Both the inner and outer surfaces of the seated gate valve are coated with a high quality epoxy powder, so that the paint is more complete and even, making the valve safe for use in beverage, food and pharmaceutical industries.
Z81X-01 Nominal Pressure PN 10/25
| Dimensions | Pressure rating | Size (mm) | Size (mm) | ||||||||
| F | C | A | B | L | H | H1 | H2 | Od | |||
| DN | inch | Class | |||||||||
| 50 | 2 | 10/16/25 | 60.3 | 57.15 | 15.88 | 7.93 | 178 | 403.5 | 358.5 | 420.5 | 22 |
| 65 | 2.5 | 10/16/25 | 73 | 69.09 | 15.88 | 7.93 | 190 | 411 | 359.5 | 429.5 | 22 |
| 76.1 | 72.26 | ||||||||||
| 80 | 3 | 10/16/25 | 88.9 | 84.94 | 15.88 | 7.93 | 203 | 437.5 | 378 | 462 | 22 |
| 100 | 4 | 10/16/25 | 108 | 103.73 | 15.88 | 9.53 | 229 | 518.5 | 449.5 | 553 | 24 |
| 114.3 | 110.08 | ||||||||||
| 125 | 5 | 10/16/25 | 133 | 129.13 | 15.88 | 9.53 | 254 | 631 | 549.5 | 677 | 28 |
| 139.7 | 135.48 | ||||||||||
| 141.3 | 137.03 | ||||||||||
| 150 | 6 | 10/16/25 | 159 | 154.5 | 15.88 | 9.53 | 267 | 686 | 591.5 | 747 | 28 |
| 165.1 | 160.9 | ||||||||||
| 168.3 | 163.96 | ||||||||||
| 200 | 8 | 10/16/25 | 219.1 | 214.4 | 19.05 | 11.10 | 292 | 865 | 735.5 | 938 | 32 |
LEDE company design and manufacture industrial valve and grooved piping system fittings, is a leading China grooved end gate valve manufacturer and supplier, provide pipe jointing and flow control products of fire protection system. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron gate valve as well as custom firefighting and water supply solutions based on the client needs.
