1-Piece Flanged Ball Valve
Request a Quote
- Flange: 1/2"-2" (PN16/25/40):DIN2543/2544/2545
2-1/2"-4(PN16):DIN2543 - Mounting Pad: ISO 5211
- Working Pressure: 1/2"-2":PN16/25/40,2-1/2"-4":PN16
- Temperature Rating: -25℃ to 180℃
- Material: CF8M, CF8, CF3M, WCB
Material List
| Item | Part | Material | Qty. | ||
| 1 | Body | A216-WCB | A351-CF8 | A351-CF8M | 1 |
| 2 | Cap | A216-WCB | A351-CF8 | A351-CF8M | 1 |
| 3 | Body Gasket | PTFE | 1 | ||
| 4 | Ball | 304 | 304 | 316 | 1 |
| 5 | Seat | RPTFE | 2 | ||
| 6 | Stem | 304 | 304 | 316 | 1 |
| 7 | Thrust Washer | PTFE | 1 | ||
| 8 | O-ring | Viton | 1 | ||
| 9 | Stem Packing | PTFE | 1 | ||
| 10 | Gland Nut | 304 | 1 | ||
| 11 | Belleville Washer | 301 | 2 | ||
| 12 | Nut Stopper | 304 | 1 | ||
| 13 | Nut | 304 | 2 | ||
| 14 | Plate Washer | 304 | 2 | ||
| 15 | Lock | 304 | 1 | ||
| 16 | Handle | 304 | 1 | ||
| 17 | Handle Cover | Plastic | 1 | ||
| 18 | Stop Pin | 304 | 1 | ||

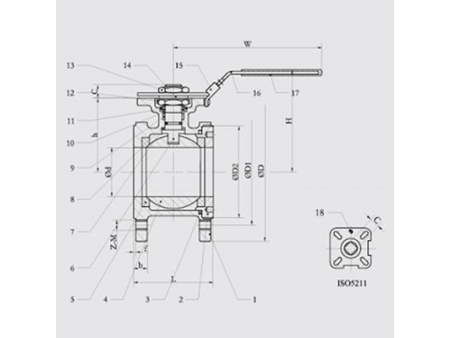

Dimensions (unit: mm)
| Size | D | L | D | D1 | D2 | B | F | H | W | C | ISO5211 Standard | |
| DN15 | 1/2" | 15 | 36 | 95 | 65 | 45 | 11 | 2 | 89 | 117 | 9 | E03/F04 |
| DN20 | 3/4" | 20 | 38 | 105 | 75 | 58 | 11 | 2 | 94 | 117 | 9 | E03/F04 |
| DN25 | 1" | 25 | 50 | 115 | 85 | 68 | 12 | 2 | 90 | 164 | 11 | E04/F05 |
| DN32 | 1-1/4" | 32 | 53 | 140 | 100 | 78 | 14 | 2 | 100 | 164 | 11 | F04/F05 |
| DN40 | 1-1/2" | 40 | 65 | 150 | 110 | 88 | 15 | 3 | 105 | 203 | 14 | E05/F07 |
| DN50 | 2" | 50 | 78 | 165 | 125 | 102 | 16 | 3 | 125 | 203 | 14 | F05/F07 |
| DN65 | 2-1/2" | 65 | 98 | 185 | 145 | 122 | 16 | 3 | 140 | 255 | 17 | F07/F10 |
| DN80 | 3" | 76 | 118 | 200 | 160 | 138 | 18 | 3 | 145 | 255 | 17 | F07/F10 |
| DN100 | 4" | 94 | 140 | 220 | 180 | 158 | 18 | 3 | 175 | 302 | 17 | F07/F10 |
