A3600 Dental Chair Unit (Tecnodent dental chair, handpiece, endoscope, LED light)

A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
A3600 Dental Chair Unit  (Tecnodent dental chair, handpiece, endoscope, LED light)
Request a Quote
Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light): AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cmmaximum height of the chair; ≧80cm;
  • Load of chair: ≦300kg;
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 160*111*130 cm
  • Packed weight: 400KG
Features
  • The central body of the dental chair unit is attached to the ground, which improves both the stability and security of the chair.
  • The original EC019 chair produced by the Italian company TECNODENT features an ergonomic design that ensures patient comfort.
  • An intraoral camera helps the dentist with their exam, thus promoting communication between the dentist and patient.
Component introduction
    Electric patient chair
  • The chair uses electric control for the height.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The height of chair is controlled using a 220V motor, which ensures a stable, fast lifting process.

    Spittoon
  • The spittoon can be turned 90 degrees, which makes spitting easier.
  • The height and the position of the spittoon can be controlled using manual or induction mode.
  • The nurse bench board can be rotated 90 degrees, giving the operator more space.
  • The ceramic tray and water nozzle are removable, making the disinfection process easier.

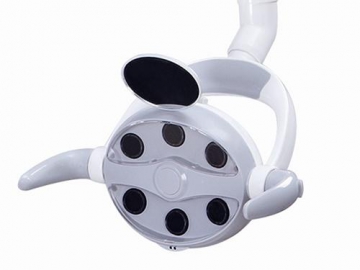

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode, as well as adjust the light intensity in a manual or induction mode.

    Intraoral camera
  • The intraoral camera assists the dentist in monitoring the patient's oral condition, and thus, promotes communication between the dentist and patient.

    Instrument tray
  • The instrument tray uses a European style top-mounted handpiece design.
  • The motion bar on the handpiece has 3 fixed positions.
  • The silicone cushion can withstand high temperature disinfection.
  • The instrument tray is equipped with a keypad control panel.
  • The four-hole handpiece which uses advanced PU materials that are corrosion resistant, high-pressure resistant and aging-resistant.

    Multifunctional foot control
  • Dentists can adjust the height of chair and back by using a foot pedal.
  • Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • TECNODENT electric patient chair 1set
  • Floor side box 1set
  • Adjustable spittoon 1set
  • Keypad nurse control console 1set
  • Water supply and conversion system for dental unit 2set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Keypad instrument table 1set
  • LED dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
  • Nurse chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Medical saliva suction negative-pressure machine
  • Intraoral camera (+display)
  • Other corollary equipment
Installation
