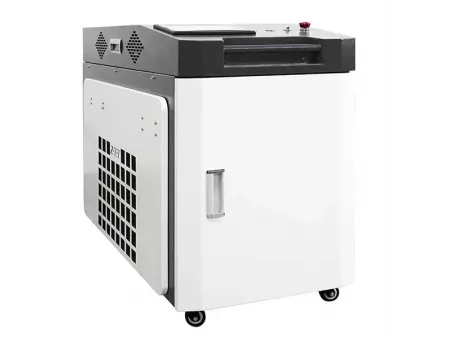

Continuous Wave Fiber Laser Cleaning Machine
- Laser Power: 1500 / 2000 / 3000 / 6000W
- Cleaning Efficiency: 5 m²/h
- Fiber Length: 10 meters
- Cleaning Head Weight: 600g
- Non-contact, zero-consumable cleaning: Cleans rust, paint, and grease without chemicals or abrasives. Zero secondary pollution and no damage to the base material.
- Ergonomic handheld gun: Weighing only 600g, the laser head features a lightweight, ergonomic design for one-handed operation—perfect for deep grooves and hard-to-reach areas.
- Industry-leading speed: Removes rust from 5m² in just one hour—10 times faster than manual grinding. Daily cleaning capacity exceeds 500m², reducing labor costs by 60%.
- Metals: Stainless steel, carbon steel, aluminum alloys, titanium alloys (for rust removal, paint stripping, oxide layer removal).
- Industrial components: Molds (tire/food molds), engine parts, welds on nuclear equipment.
- Special applications: Ship rust removal, aerospace coatings, cultural heritage surface restoration (bronze ware, stone carvings).
- Composite materials: Metal-rubber joint surfaces, coated steel plates (without damaging the underlying material).
| Content | Parameter |
| Supply voltage | single-phase 220V/110V±10%, 50/60Hz AC |
| Whole machine power consumption | 2500W (including chiller) |
| Place the environment | flat, no vibration, no impact |
| Working temperature | 0℃～40℃ |
| Working environment humidity | ≤80% |
| Content | Parameter |
| Wavelength | 1080nm |
| Average laser power | 1500W / 2000W / 3000W / 6000W |
| Power adjustment range (%) | 10-100 (gradient adjustable) |
| Repetition frequency (KHz) | 20-50 (gradually adjustable) |
| Cleaning efficiency (m2/h) | 5 |
| Cooling method | water cooling |
| Content | Parameter |

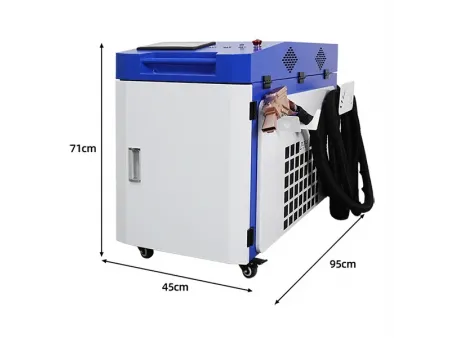

| Machine Size | 450*950*800mm |
| Packing Size | 107*61*85cm |
| Net Weight | 110kgs |
| Packing Weight | 130Kgs |
| Fiber length | 10 meters |
| Cleaning head weight | 600g |
| Scan width | 10-100mm |
| Move method | Hand held |
Laser source
Adopts industry-leading renowned brands such as Raycus, JPT, MAX, RECI, and IPG laser sources, featuring high pump conversion efficiency, low power consumption, and excellent beam quality, ensuring stable performance and a lifespan of up to 100,000 hours.
Handheld cleaning head
With a QBH interface paired with a continuous fiber laser, it provides high-power density output for rust removal in seconds. Its lightweight, ergonomically designed grip supports 360° multi-angle operation, easily tackling complex structures like gear walls and weld blind spots. Built-in preset programs allow for one-key parameter switching, boosting cleaning efficiency by over 5 times compared to traditional sandblasting.
Touch screen
Provides a high-resolution display interface, supporting real-time parameter monitoring and operational feedback to ensure precise control over key parameters such as laser power, frequency, and energy. It features built-in multi-language options (e.g., Chinese, English) to meet global user demands and lower the operational threshold.
Water cooling circulation system
Features a dual-channel water cooling design with a high-flow centrifugal pump (≥60L/min), capable of reducing the temperature of core components from 80℃ to 25℃ within 30 seconds. It supports continuous 8-hour full-load operation of the laser without power attenuation. Real-time monitoring of water temperature, flow, and pressure triggers automatic alarms and shutdown protection in abnormal conditions.
Protective lenses
Made from JGS1 quartz or ZnSe zinc selenide, with light transmittance ≥99.8% and laser damage threshold >15J/cm². They are suitable for high-power equipment above 2000W, reducing energy loss. Double-sided anti-reflective coating reduces reflectivity to below 0.2%, preventing secondary light pollution.
- Protective lenses
- Focusing lenses
