Marine Motor Control Panel

Request a Quote

View All: http://hlinductionmotor.com

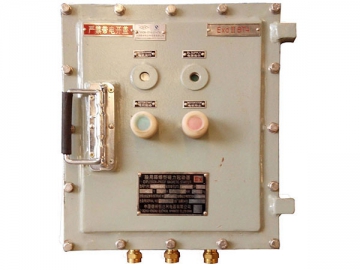

The QDC series of the marine motor control panel is used to control three phase induction motor’s direct starting in clockwise or counterclockwise rotation. This motor control box runs on every kind of ship and has protections against short circuits, default phases, overloads and voltage loss. The control box can be programmed with remote control.

Application Environment:
Ambient temperature: -25℃-45℃
Inclination, Swing:±22.5°
There are influences of shock, vibration, salt mist, fungus and humid air on the sea when the ship is in normal operation.
The protection class of cabinet is IP44 and can be made to IP56 according to the customer’s requirements.

Basic type and motor equipment for QDC series motor control box:

Starter type	Controlled motor	Housing (IP44): LWT	Remark
QDC91-0.55KW	Y801-4-H	400X300X140
QDC91-0.75KW	Y801-2-H
	Y802-4-H
	Y90S-6-H
QDC91-1.1KW	Y802-2-H
	Y90S-4-H
	Y90L-6-H
QDC91-1.5KW	Y90S-2-H
	Y90L-4-H
	Y100L-6-H
QDC91-2.2KW	Y90L-2-H
	Y100L1-4-H
	Y112M-6-H
	Y132S-8-H
QDC91-3KW	Y100L-2-H
	Y100L2-4-H
	Y132S-6-H
	Y132M-8-H
QDC91-4KW	Y112M-2-H
	Y112M-4-H
	Y132M1-6-H
	Y160M1-8-H
QDC91-5.5KW	Y132S1-2-H
	Y132S-4-H
	Y132M2-6-H
	Y160M2-8-H
QDC91-7.5KW	Y132S2-2-H
	Y132M-4-H
	Y160M-6-H
	Y160L-8-H Y160M1-2-H
QDC91-11KW	Y160L-8-H Y160M1-2-H
	Y160M-4-H
	Y160L-6-H
	Y180L-8-H

Overall and mounting dimensions
