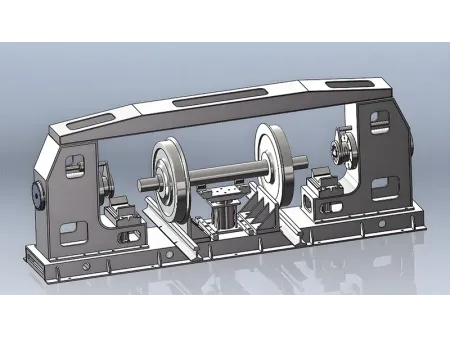

Wheelset & Bearing Presses
The wheelset and bearing press systems are engineered for precise mounting and dismounting of wheels, gears, bearings, brake discs, and other components onto or from axles. Widely applied in the rail transport, automotive, motor, and bearing manufacturing industries, these machines can be custom-built to meet specific application requirements.
| Model | ||||
| Nominal force (kN) | 500 | 3150 | 5000 | 8000 |
| Stroke of main cylinder (mm) | 500 | 500 | 700 | 1000 |
| Stroke of working table (mm) | 500 | 1000 | 3600 | 3600 |
| Power (kW) | 8.7 | 22 | 34 | 34 |
| Working pressure (MPa) | 20 | 25 | 25 | 25 |
The wheelset and bearing press system is a type of high-performance hydraulic assembly machine designed for interference-fit operations. Available in vertical and horizontal configurations, with models ranging from 50 to 800 tons, it is ideal for pressing and disassembling components such as wheels onto rail axles, bearings onto shafts, motor rotors onto drive shafts, tight-tolerance assemblies in locomotive, automotive, and industrial equipment. Also known as a train wheelset press, this advanced mechatronic system integrates precision hydraulics, automated control, and high-accuracy sensors delivering superior positioning accuracy, force control, and operational efficiency for high-throughput production or maintenance operations.
