HYPERBARIC OXYGEN THERAPY (HBOT)
Hyperbaric chamber for providing pure oxygen at pressure up to 3.0ATA for a single patient
- Maximum allowable working pressure (MAWP)0.2MPa (3.0ATA)
- Capacity1 person
Monoplace Cylindrical Hyperbaric Oxygen Chamber
Request a Quote
Monoplace cylindrical hyperbaric oxygen chambers provide pure oxygen therapy at pressures up to 3.0 ATA (0.2 MPa), designed for single-patient use in clinical settings. These HBOT chambers allow patients to remain in a lying position throughout the session and can be accessed using stretchers, which is suitable for those with limited mobility or in recovery. Each hyperbaric unit includes an integrated monitoring system for real-time observation, supporting patient safety and comfort during treatment. Centralized control and clear data visualization make operation efficient for medical staff. These hyperbaric chambers are ideal for clinics, outpatient facilities, and small hospitals looking to offer high-pressure oxygen therapy as part of their treatment options.
Specifications
| Chamber diameter | 800mm |
| Chamber length | 2600mm |
| Internal volume | 1.2m³ |
| Maximum allowable working pressure (MAWP) | 0.2MPa (3.0ATA) |
| Design number of patients | 1 patient |
| Internal volume per person | 1.2m³/person |
| Observation window diameter | 160mm |
| Number of observation windows | 5pcs |
| Transparent window diameter | 160mm |
| Number of transparent windows | 2pcs |
| Chamber material | Q245R |
| Door | Outward opening door with safety self-locking mechanism |
| Oil-free air compressor | 1pc |
| Compressed air cooling unit | 1pc (cooling coil type) |
| Compressed air purification unit | 1pc (including steam water separator and air filter) |
| Compressed air storage container | 1pc (1.5m³/1.0MPa) |
Main Components

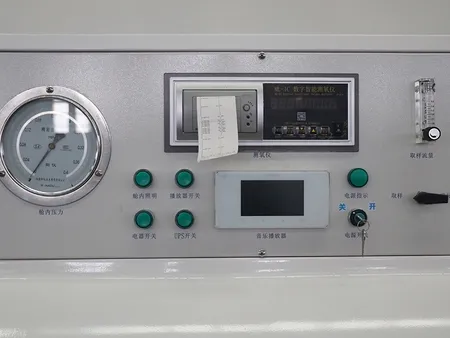

Main Control System
Our monoplace cylindrical hyperbaric oxygen chambers feature centralized controls for simple operation and real-time oxygen monitoring. A built-in UPS (Uninterruptible Power Supply) ensures emergency power backup, while the integrated audio system combines treatment with entertainment to enhance the user experience.

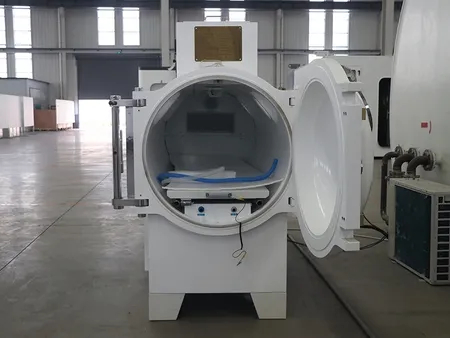

Stretcher Bed & Mattress
A sliding stretcher bed makes it easier to transfer patients in and out, especially in clinical environments where speed and stability matter. The mattress is covered with a flame-retardant material that meets B1-grade fire safety standards under GB50222-1995, ensuring both comfort and reliable protection throughout each session.

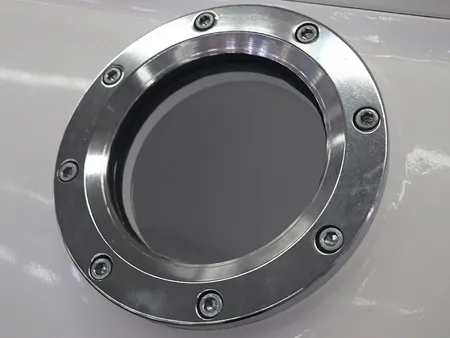

Observation Window
Our hyperbaric chambers are equipped with acrylic glass viewing windows that allow medical staff to monitor the patient’s condition without opening the unit. This design helps maintain a controlled internal environment while ensuring visibility and reassurance during therapy.
