ARC MMA Welding Machine / Inverter Stick Welder
Request a Quote

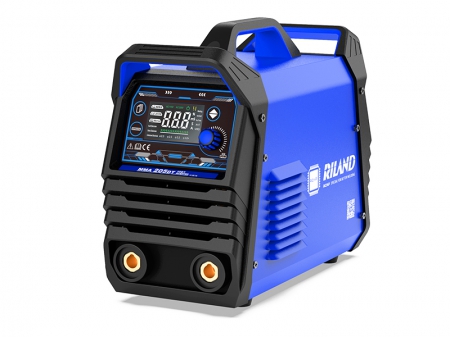

MMA 205DT
Features
- Robust industrial housing with a clean, protective design. The IP23S protection rating helps protect the machine against water spray and solid objects larger than 12.5 mm
- Equipped with RILAND self-developed RICHIP chip technology for high functional integration and low processing latency, helping improve operating efficiency
- Intelligent synergic control system for easier setup and operation
- Supports MMA stick welding and Lift-TIG welding, allowing users to select the appropriate welding mode for different applications
- Adjustable Anti-Stick, Arc Force, and Hot Start functions for improved arc starting and welding control
- An intelligent cooling fan helps prevent overheating during operation
- VRD (Voltage Reduction Device) helps enhance operator safety by reducing open-circuit voltage when the machine is not welding
- Built-in overcurrent, over-temperature, and overvoltage protection helps reduce downtime and maintenance costs
Specifications
| Model | | |
| Power supply (V) | 1P AC230V ±15% | |
| Frequency (Hz) | 50/60 | |
| Open circuit voltage (V) | 68/18(VRD) | |
| Rated input current (A) | 27 (TIG) 40 (MMA) | |
| Rated input power capacity (kVA) | 6.1 (TIG) 9.5 (MMA) | |
| Output current range (A) | 10-200 (TIG) 30-200 (MMA) | |
| Rated duty cycle (%) | 25 | |
| Efficiency (%) | 83 | |
| Power factor | 0.71 | |
| Protection rating | IP23S | |
| Insulation class | H | |
| Dimensions (L×W×H) (mm) | 345×168×285 | |
Package Included
- Earth clamp
- 1 set electrode holder
Applications
Optional Welding Accessories
Ground clamp & cable assembly
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
Welding chipping hammer
