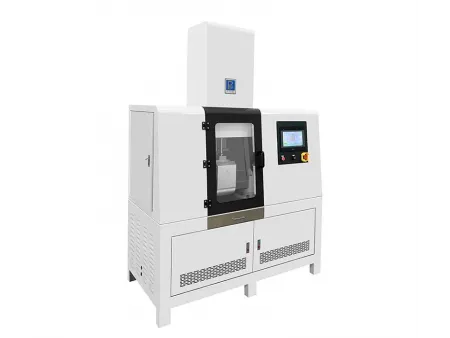

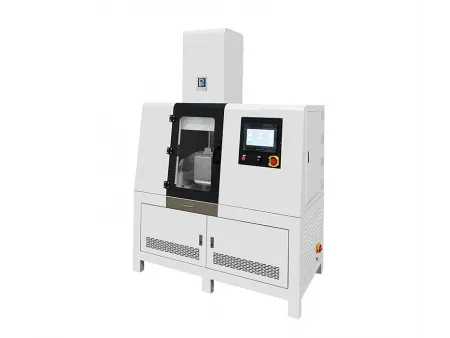

BP-8172-B (eco-friendly) Dust Proof Laboratory Internal Mixer
Request a Quote
Laboratory mixers for mixing, dispersing, kneading, plasticizing and formula testing of rubber, plastic, and other polymers
- Chamber volume: 1L/3L/5L
- PLC control
- Water cooling
The dust proof laboratory internal mixer is designed for the mixing and kneading of plastics and chemical raw materials, along with a variety of low-viscosity materials. Its specially designed dust-proof patented technology effectively prevents dust and harmful gases, ensuring that your environment stays safe and free from contamination. The mixer features plc programmable control, offering precise temperature and speed settings for an efficient and eco-friendly operation.
Applications
The dust proof laboratory internal mixer is ideal for mixing and kneading plastics, rubber, and composite materials, making it perfect for material research and formula development in universities, research institutions, and company labs.
- Mixing and kneading of plastic, rubber, and composite materials
- Material development and formula optimization
- Small-scale production for research and testing
Technical Data
- Chamber volume
1L/3L/5L - Capacity
1kg/3kg/5kg per batch - Temperature range
Room temperature to 260℃ - Heating method
Electric heating - Speed ratio
1:1.27 - Rotor speed
0-50rpm, frequency conversion speed regulation - Pressure
0.4-0.6MPa (pneumatic pressing of material, air compressor is provided by user) - Cooling method
0.2-0.4MPa tap water cooling - Dimensions (W×D×H)
1478×786×2134mm - Power supply
AC380V, 22A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 925kg
