Extrusion Coating Laminating Line Woven Fabric
Some typical application of woven coating / laminating will be car mat, bulk bag, water drainage pipe, tarpaulins, tents and etc.
- Product width: from 1000mm to 3500mm, or upon request
- Coating resin: LDPE, LLDPE, EVA, etc.
- Substrates: woven fabric
- Diameter of unwinding: 1200mm max.
- Diameter of winding: 1000mm max.
- Line speed: 150m/min

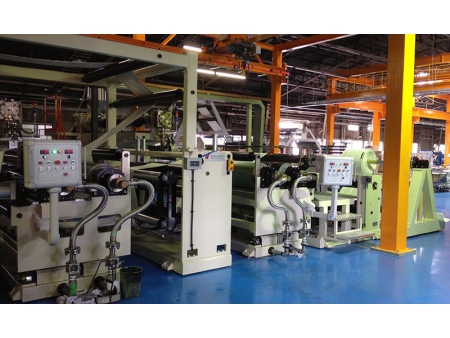

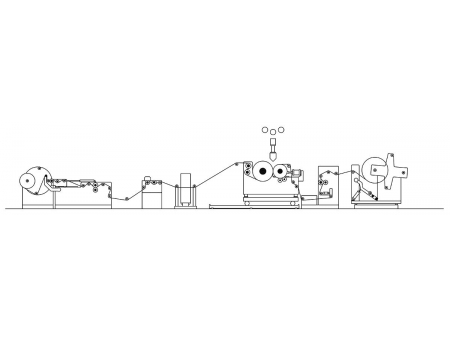

Woven fabric extrusion coating line is equipped with high-performance extruder, chrome-plated chill roll, and high tension control system. The extruders coat PE polymer resins onto a substrate of woven fabric and make the high bonding strength between melt curtain and woven fabric substrate.
The line can also be equipped with up to 4 extruders, to make sandwich or tubular coating. We are able to add some proper pre-treatment such as pre-heating and pre-hydration before coating. Some other unique line solution is available to best meet your market need.
A large portion of woven sacks is produced with coating, because coated sacks provide much better protection of the contents from dust and especially from moisture. Coated fabric also offers better printability. For Coating thin layer of LDPE / PP / EVA on substrates like Woven Sacks, Tarpaulins, Jumbo Bags, BOPP Film, Paper, Aluminum Foil, Polyester Film, Cotton Fabrics, Jute, Non Woven Fabrics, etc. Tandem Lamination Line for coating tube Woven Fabrics, to produce multi-layer laminates along with the various substrates like Paper, Aluminum Foil, Polyester film etc. Extrusion Coating Lamination Machine adds superior protection for products when they are packed. Extrusion coating lamination plant is a suitable solution to produce very slim lining layers made of PP, LDPE. This coating material will them be added to packaging components like woven sacks, giant size bags, aluminum foil, cotton and jute fabric bags, etc.
