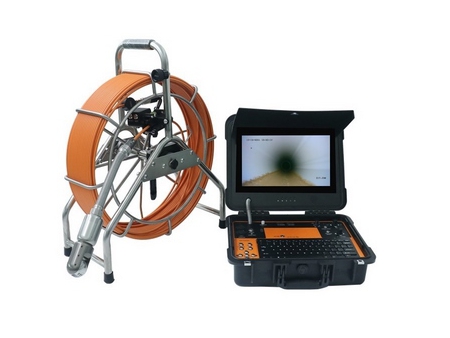

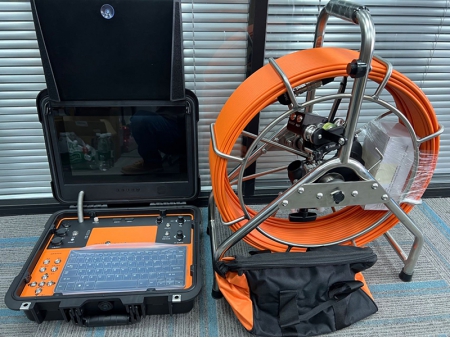

EMH388PT Pipe Inspection Camera
Safety and stability of pipeline systems are absolutely vital in contemporary industrial manufacture. But conventional inspection techniques sometimes find it difficult to properly spot any problems in internal pipeline environments due of their complexity and inaccessibility. Using cutting-edge optical and image processing technology, industrial pipeline borescopes—advanced inspection tools—examining internal pipeline conditions effectively. Using these borescopes allows specialists to rapidly identify and fix hidden issues, therefore guaranteeing seamless functioning and improving both dependability and safety in the manufacturing process.
- Resolution: 960P 2 mega pixel camera;
- Display: 13-inch HD Screen
- 360° Joystick Articulation with IP68 waterproof design
- Up to 100 meters with cable reel
- DVR with keyboard control, video/audio/image recording capability
- Supports meter counter, with pipe guide wheel
- Supports Li-ion battery and power adapter, 5-hour battery life
- Application: Municipal engineering, water pipe construction, construction industry, etc
| Structure | Pipe inspection camera with DVR control (video/audio/image storage) | Articulation | 360° electrical articulation |
| Camera pixel | HD 2 megapixel | Waterproof | IP68 10bars |

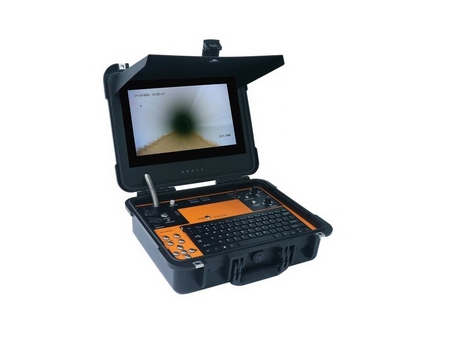

| Screen size | 13 inch LCD screen | Light | 6pcs high-brightness LED (adjustable) |
| Cable size | Cable diameter Ø7.0mm, standard cable length 50m (up to 100m) | Storage medium | Hard disck storage |
| Control | USB/bluetooth/keyboard, support 16x zoom | Battery | 8800mA li-ion battery pack, 5 hours work time, support AC adapter |

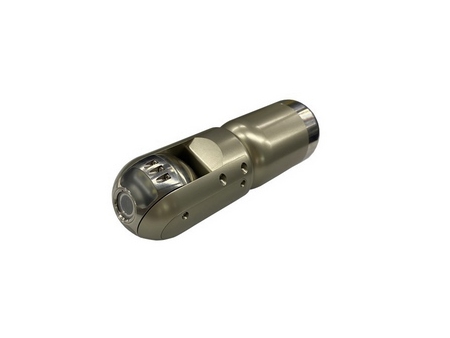

| Camera size | Ø50mm×153mm | Cable reel size | 510×250×640mm |
| Meter counter | Built-in meter counter with 1% accuracy | Pipe guide wheel | Outer diameter 85mm-450mm |
| Total weight | 26kg | Working temperature | -20℃ to 80℃ |
| Others | * Camera rotation joystick * Rotate reset button, focus reset button * Built in Chinese, English, and character input system * Bluetooth keyboard with USB and metal keys * Manually controlled recording with record key * Audio/video output, with function of recording videos and taking photos at the same time * Fiberglass push rod cable, aviation plug connector * Meter counter button RESET, Button F/M (switch inch/meter unit) * Stainless steel portable cable rack, built-in digital counter with 1% accuracy | ||

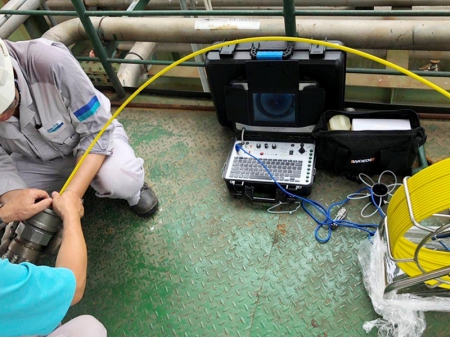

- Inspecting Internal Pipeline Conditions
Using high-definition cameras to record interior conditions like corrosion, cracks, obstructions, and foreign objects, industrial pipeline borescopes can be buried far into pipes. Using a pipeline borescope allows operators to rapidly and precisely evaluate the interior condition of the pipeline, therefore supporting future maintenance and repair activities.
- Enhancing Maintenance Efficiency
The real-time display features let operators exactly find problems, hence increasing maintenance efficiency and lowering repair costs.
