RMU Secondary Interface Module

RMU Secondary Interface Module
RMU Secondary Interface Module
RMU Secondary Interface Module
Request a Quote
Technical Specifications
Dimensions (L×W×H) 365×170×124mm
Fixed size 355×120mm (spacing of holes), 4ר6.5mm
Dimensions (L×W×H) 300×70×107mm
Fixed-size 290mm (spacing of holes), 2ר4.5mm
Dimensions (L×W×H) 361×152×99mm
Fixed-size 340.5×82mm (spacing of holes), 4ר6.5mm
Dimensions (L×W×H) 121×106×61mm
Fixed-size 113×98mm (spacing of holes), 4ר4.5mm

Note: Contact HCRT if a different condition is required. We offer customized solutions as well.

Features
Modular Design:

Facilitates ease of maintenance and installation.

Unique Interface:

Employs rectangular connectors with a fool-proof design and no exposed terminals, ensuring interface uniqueness.

Anti-Trip and Self-Holding:

Features anti-tripping and self-holding functions for the operating circuit.

CT Self-Short Circuit:

Relevant connectors for electromagnetic current transformers include a CT terminal self-short circuit function, addressing the anti-open circuit requirement.

High Protection Level:

Achieves an overall protection level of IP55, ensuring reliable operation in environments with severe condensation and effectively preventing solid dust ingress.

Standardized RMU Application:

Suitable for the circuit breaker bay of primary and secondary fusion standardized ring main units, providing open/close control, circuit monitoring, and protection anti-tripping functions.

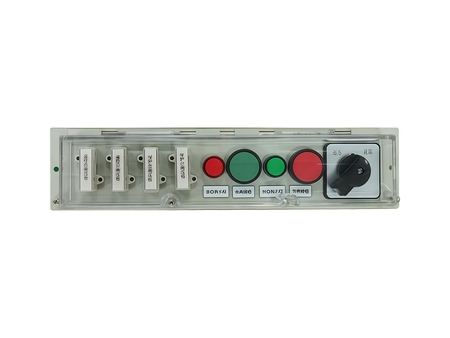

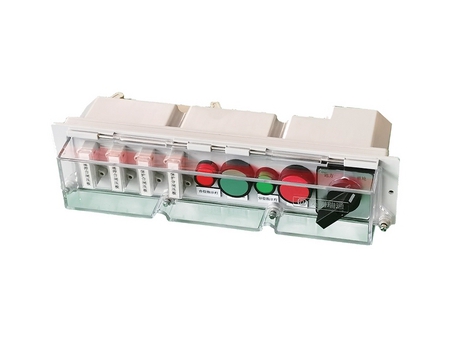

Bay Operation Module:

Includes pressure plates for remote closing, remote opening, protection closing, and protection tripping, along with a remote-control switch, open/close buttons, open/close indicator lights, and remote/local switching.

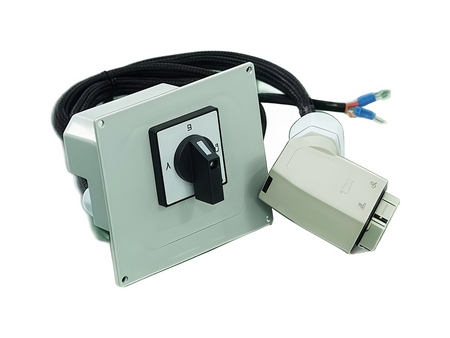

PT Switching Module:

Designed for three-phase AC voltage switching in power systems, allowing for the output of any single-phase voltage.
