MS Material Handling Equipment

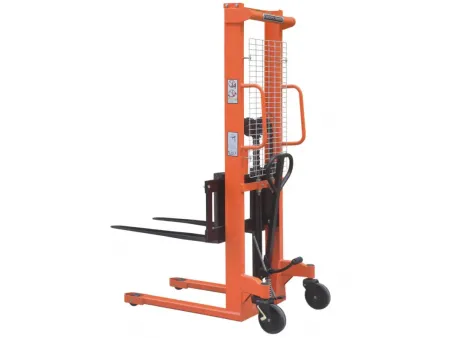

Hand pallet stacker with 1000/2000kg capacity, up to 1600mm lifting height

Widely used in warehouses, factories, and industrial settings, the single-frame manual stacker offers a reliable and efficient solution for material handling needs. This versatile equipment is designed to perform quick and accurate goods handling and stacking, enhancing operational efficiency while ensuring safety and ease of use.

  • 1000/2000kg
  • 1600mm

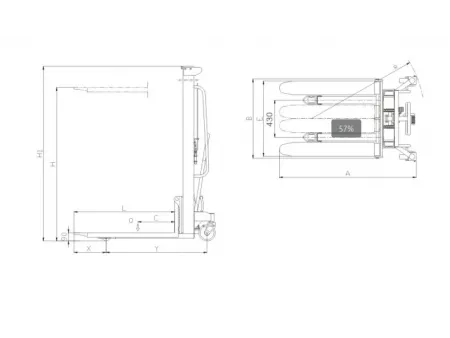

Specifications
Model Number MS10-16 MS20-16
Rated Capacity (Q) kg 1000 2000
Load Center (C) mm 400 400
Min. Fork Height mm 90 90
Max. Fork Height (H) mm 1600 1600
Fork Length (L) mm 1150 1150
Overall Fork Width (E) mm 300-850 320-850
Min. Turning Radius (R) mm 1250 1250
Wheel Base (Y) mm 1100 1100
Front-Wheel Distance (X) mm 178 178
Overall Length (A) mm 1600 1600
Overall Width (B) mm 850 850
Overall Height (H1) mm 2100 2100
Overall Net Weight kg 255 290
Features
