C Type Nonwoven Face Mask Making Machine
Request a Quote
Application

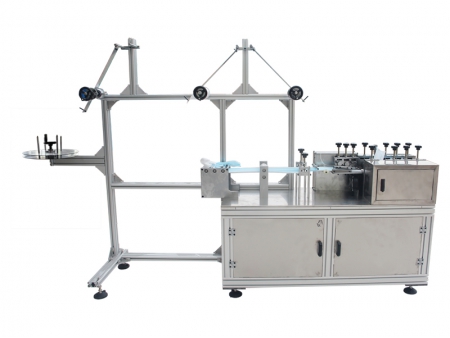

This machine is also called C type or folded nonwoven face mask making machine. It uses ultrasonic technology to create 3 to 5 layers of PP nonwoven fabric, activated carbon and other filter materials, and turn them into a C-shaped face mask. The process includes bonding, punching, folding, welding and cutting, and the face masks produced are similar to the 9001 and 9002 series by 3M.
| Power supply | 220V |
| Power | 5KW |
| Air pressure | 5kg/cm² |
| Output capacity | 35-60pcs/min |
| Overall dimensions(L×W×H) | 4500mm*1230mm*1740mm |
| Net weight | 800KG |
- The face mask making machine features a small, compact structure that saves space.
- The PLC program control is stable with a low failure rate.
- The entire aluminum alloy structure is strong and corrosion resistant.
- Photoelectric detection reduces the error rate.
- The welding strength of the ear loop is adjustable. Users can attain FFP1, FFP2, N95 and other standards through the use of different materials.
- The roller and knife are replaceable for printing different logos and patterns. This ensures that production of folded face masks in other shapes and sizes can be produced.
- Equipped with an automatic feeding device for nose wires and waste edge collecting devices, breathing valve holes and built-in nose beams are optional choices.
- Automatic counting and fixed-number shutdown function.
