PCBN Tools (Tool Bits for Whirling), TCGW

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-tcgw-2-2-4.html

Technical Specifications

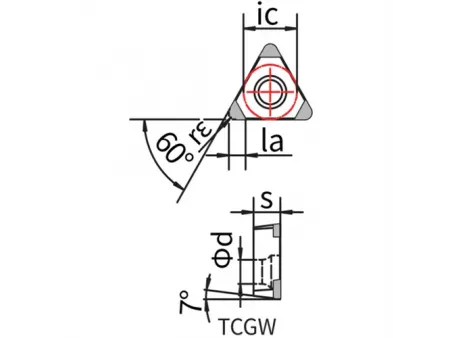

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
TCGW080202	TCGW(1.5)(1.5)(0.5)	3N	Standard	4.76	2.4	2.38	0.2	2.2	●	●	●
TCGW080204	TCGW(1.5)(1.5)1						0.4
TCGW080202	TCGW(1.5)(1.5)(0.5)	3N	Standard	4.76	2.4	2.38	0.2	3	●	●	●
TCGW080204	TCGW(1.5)(1.5)1						0.4
TCGW090202	TCGW(1.8)(1.5)(0.5)	3N	Standard	5.56	2.4	2.38	0.2	2.2	●	●	●
TCGW090204	TCGW(1.8)(1.5)1						0.4
TCGW090208	TCGW(1.8)(1.5)2						0.8
TCGW090202	TCGW(1.8)(1.5)(0.5)	3N	Standard	5.56	2.4	2.38	0.2	3	●	●	●
TCGW090204	TCGW(1.8)(1.5)1						0.4
TCGW090208	TCGW(1.8)(1.5)2						0.8
TCGW110302	TCGW22(0.5)	3N	Standard	6.35	2.8	3.18	0.2	2.2	●	●	●
TCGW110304	TCGW221						0.4
TCGW110308	TCGW222						0.8
TCGW110302	TCGW22(0.5)	3N	Chip breaker	6.35	2.8	3.18	0.2	2.2	●	●	●
TCGW110304	TCGW221						0.4
TCGW110308	TCGW222						0.8
TCGW110302	TCGW22(0.5)	3N	Standard	6.35	2.8	3.18	0.2	3	●	●	●
TCGW110304	TCGW221						0.4
TCGW110308	TCGW222						0.8
TCGW110302	TCGW22(0.5)	3N	Chip breaker	6.35	2.8	3.18	0.2	3	●	●	●
TCGW110304	TCGW221						0.4
TCGW110308	TCGW222						0.8
TCGW160304	TCGW321	3N	Standard	9.525	4.4	3.18	0.4	2.2	●	●	●
TCGW160308	TCGW322						0.8
TCGW160312	TCGW323						1.2
TCGW160304	TCGW321	3N	Chip breaker	9.525	4.4	3.18	0.4	2.2	●	●	●
TCGW160308	TCGW322						0.8
TCGW160312	TCGW323						1.2
TCGW160304	TCGW321	3N	Standard	9.525	4.4	3.18	0.4	3	●	●	●
TCGW160308	TCGW322						0.8
TCGW160312	TCGW323						1.2
TCGW160304	TCGW321	3N	Chip breaker	9.525	4.4	3.18	0.4	3	●	●	●
TCGW160308	TCGW322						0.8
TCGW160312	TCGW323						1.2
TCGW160404	TCGW331	3N	Standard	9.525	4.4	4.76	0.4	2.2	●	●	●
TCGW160408	TCGW332						0.8
TCGW160412	TCGW333						1.2
TCGW160404	TCGW331	3N	Chip breaker	9.525	4.4	4.76	0.4	2.2	●	●	●
TCGW160408	TCGW332						0.8
TCGW160412	TCGW333						1.2
TCGW160404	TCGW331	3N	Standard	9.525	4.4	4.76	0.4	3	●	●	●
TCGW160408	TCGW332						0.8
TCGW160412	TCGW333						1.2
TCGW160404	TCGW331	3N	Chip breaker	9.525	4.4	4.76	0.4	3	●	●	●
TCGW160408	TCGW332						0.8
TCGW160412	TCGW333						1.2
