Rear Drive Axle Assembly HQ061A Series
Request a Quote
Your Motion
Features
The rear drive axle assembly offers excellent overall performance, combining a high loading capacity with a compact and easy-to-transport design. Its stable structure ensures smooth, reliable operation across a variety of working conditions.
Applications
Suitable for many indoor and outdoor electric vehicles, including powered mobility scooters, children’s electric ATVs, and kids’ electric go-karts, providing steady and efficient drive support.
Technical Specifications
| Model No. | HQ061A |

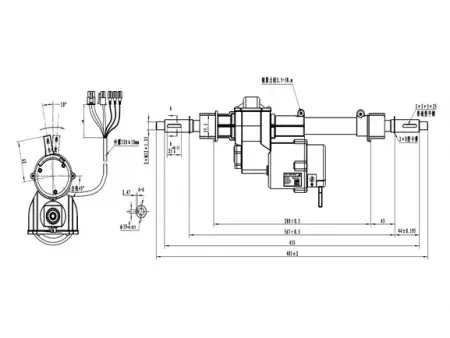

| L1 Size (mm) | 485 |
| L2 Size (mm) | 367 |
| Braking Mode | EM Brake/2N.m/24V |
| Matched Gear Ratio | 24:1(8inch tire) / 28:1(10inch tire) |
| Matched Motor | TF061A/BLDC Motor |
| Rated Voltage (V) | 24 |
| Rated Power (W) | 270 |
| Rated Torque (N.m) | 0.385 |
| Rated Current (A) | 11.2 |
| Rated Revolution (RPM) | 5000 |
| No-load Current (A) | ≤1.2 |
| No-load Revolution (RPM) | 5500 |
| Rated Efficiency (%) | ≥80 |
| Max. Torque by Gearbox Reduction (N.m) | 9.24 |
| Working Cycle (min.) | S2-40 |
| Insulation Class | F |
| Protection Level | IP54 |
| Remark | The size of L1 and L2 can be customized per your special requirements. |
