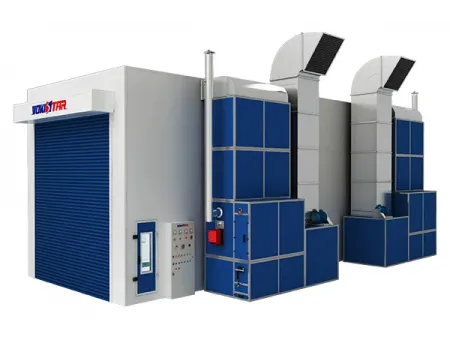

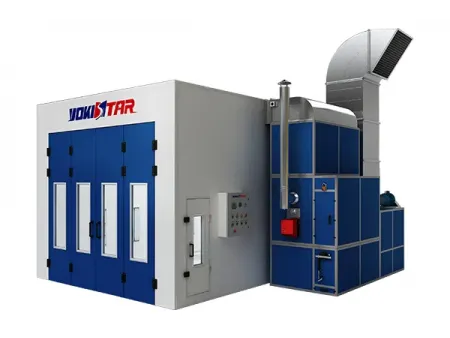

Bus & Truck Spray Booth
Industrial spray booths for large vehicle finishing
When working on special-purpose vehicles, construction machinery or firefighting units, the coating process needs to match the size and shape of these vehicles. These vehicles are often very tall, very long or shaped in a non-standard way, so the airflow, heating and access points need to be set up to match their size. Open spraying areas and regular automotive booths usually don’t have enough height, booth length or airflow strength to deal with this type of work. Large spray booths designed for buses and trucks offer the space and control needed for these projects. Their extended booth length, reinforced airflow and higher heating capacity support consistent coating on long or uneven surfaces. Full-size doors and side access points also make it easier to reach different parts of the vehicle during both manufacturing and repair work. With the right heat distribution, the curing stage becomes more stable, which helps the coating last longer on vehicles that work outdoors or under heavy use.
- City buses
- Long-distance coaches
- Heavy-duty trucks
- Armored vehicles
- Military transport vehicles
- Subway cars
- Rail car shells
- Construction vehicles (excavators, cranes, etc.)
- Agricultural machinery (tractors, harvesters, etc.)
| Pit | |
| Airflow Method | By pit-extraction airflow |
| Floor Arrangement | Two pit rows built with 30×4 mm flat bars and 10 mm twisted-steel grating, galvanized finish. Load capacity: 600 kg per wheel. Each pit measures 12,650 × 760 mm (L × W) |
| Supporting Frame | Square steel tube, 40 × 80 mm |
| Floor Filter | Fiberglass floor filter,G3 Grade (EN779), model PA-50,filtering area 19.2 m² |
| Spray Booth Cabin | |
| Internal Dimensions | 15,000 × 5,000 × 5,000 mm (L × W × H) |
| External Dimensions | 15,144 × 6,896 × 5,600 mm (L × W × H) |
| Entrance Door | Electric roller door, 4,000 × 4,600 mm (W × H), aluminum frame with PU insulation |
| Personnel Door | Two doors, 800 × 2,000 mm (W × H), each with a viewing window and color-steel frame |
| Wall Panels | 70 mm panel thickness, 1,150 mm width. EPS insulation with 0.426 mm color-steel sheets inside and outside. Tongue-and-groove interlock, fully steel-clad |
| Roof Panels | 50 mm panel thickness, 1,150 mm width. EPS insulation with 0.426 mm color-steel sheets inside and outside. Tongue-and-groove interlock, fully steel-clad |
| Ceiling Lights | Upper left and right sides each have 9 fixtures (18 total). Each fixture uses 4 PHILIPS 22W LED tubes |
| Side Lights | Lower left and right sides each have 11 fixtures (22 total). Each fixture uses 4 PHILIPS 22W LED tubes. Installed in cross upper-lower configuration |
| Plenum | 600 mm high. Cross and longitudinal beams made from galvanized bent steel, powder-coated for durability. |
| Ceiling Filter | C-shaped steel support with oil-painted finish. Sub-high-efficiency F5 Grade (EN779) filter, model YS-600G. |
| Makeup Air Units | |
| Frame Size | 2,200 × 1,600 × 2,400 mm (L × W × H) |
| Cabinet Materials | Welded 50 × 50 mm square-tube frame with PU insulation. |
| Motor and Fan | Internal-mounted motors, 2 pcs, each 7.5 kW, total 15 kW. Double-intake centrifugal fan YDW5.6M, airflow 42,000 m³/h. |
| Makeup Air Control | Belimo NUM230 10N electric actuator for fresh-air volume/pressure control. |
| Pneumatic Actuator | Controls air-valve opening/closing during spraying or baking. |
| Heat Exchanger | One unit, 232 kW, made of 1.5 mm SUS304 stainless steel (1Gr18Ni9Ti). Multi-cycle round-tube radiator with safety pressure-relief port |
| Burner | Riello RG5S diesel burner, heating output 260,000 kcal/h, qty:1. Includes 1 m stainless chimney, 3 m bent galvanized chimney,and rain cap |
| Filtration | Pocket pre-filter C16-300, G3 Grade (EN779). Fiberglass filter PA-50, G3 Grade (EN779) |
| Exhaust Air Units | |
| Frame Size | 1,600 × 1,600 × 1,850 mm (L × W × H) |
| Cabinet Materials | Welded 50 × 50 mm square-tube frame with EPS insulation |
| Motor and Fan | Belt-drive motor with European-type taper-sleeve pulley, qty:1. Motor power 11 kW. Double-intake centrifugal fan TAE-710H, airflow 36,000 m³/h |
| Exhaust Air Control | Manual actuator for VCD air-valve open/close |
| Filtration | Fiberglass filter PA-50, G3 Grade (EN779). Activated-carbon media in M-shaped filter frame |
| Control System |
System functions include spraying, heat-spraying, baking, baking time setting, lighting control, fault indication, temperature control, power switch,emergency stop, hour meter, temperature limiter, ammeter, voltmeter, pressure gauge, pressure alarm, and reduced-voltage starter for the exhaust section.
|
Split Booth
The spray booth can be configured with a dividing door system, allowing the interior to be separated into two sections.
Depending on the project layout, you can choose between a folding door or an electric roller door for this split configuration.
Outdoor Booth
When indoor space is limited, an outdoor spray booth becomes a practical solution.
An exterior protective structure can be added around the spray booth to shield it from rain, wind, and other harsh weather conditions, ensuring stable performance throughout the year.
3-Axis Movement Platform
The 3-axis movement platform provides easier and safer access to higher areas inside large spray booths, especially when working with buses, trucks or oversized components. Its three-direction movement system gives operators stable and efficient reach at elevated positions.
Heat Recuperator
The heat recuperator allows the system to reuse part of the hot air that would normally be exhausted. This recirculation helps reduce energy consumption during operation, providing a more efficient heating process inside the spray booth.
