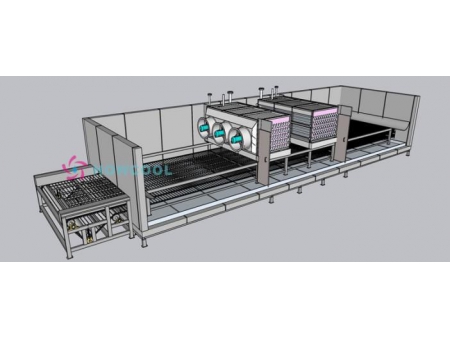

IQF Tunnel Freezer
With a large freezing area and the ability to freeze various types of food including individual freezing, block freezing, and plate freezing, it's the ideal freezing equipment for your business.
Our fully enclosed air duct structure ensures that air is blown in multiple directions, covering all angles of your products. This allows for an ideal freezing process, improving the quality and efficiency of your products.
To ensure the best results for your specific products, you can choose between a stainless steel mesh belt or plate belt. The plate belt freezer is ideal for soft and liquid foods with high water content, such as fresh meat, aquatic products, fish fillets, scallops, and wheaten food. Meanwhile, the mesh belt freezer is suitable for seafood, poultry meat, aquatic products, wheaten food, dairy products, and more.
| Model | Size (mm) | Power rating | Number of fans | Output (kg/h) | Belt width (mm) | Food tunnel |
| | 12000*2500*2700 | 16KW | 4 | 300 | 1200 | 55-175mm |
| | 18000*2500*2700 | 32KW | 6 | 500 | 1200 | |
| | 22000*2500*2700 | 28KW | 8 | 750 | 1200 | |
| | 18000*5200*2700 | 44KW | 12 | 1000 | 2*1200 | |
| | 13500*2350*2650 | 11KW | 4 | 300 | 1200 | |
| | 16500*2450*2650 | 20KW | 6 | 500 | 1500 | |
| | 18500*3050*2650 | 26KW | 8 | 750 | 2200 | |
| | 20500*3450*2650 | 39KW | 12 | 1000 | 2600 | |
| Example | aquatic food | The infeed temperature is 20℃ and the outfeed temperature is -18℃. | ||||
| With adjustable belt width ranging from 800mm to 3500mm, we can tailor the equipment to fit your production line. | ||||||
- High-Quality IQF Products: Our freezer ensures that your finished products are of the highest quality, free of clots, and in line with the food hygiene standards.
- Short Freezing Time: With its air convection system and short freezing time, our freezer guarantees excellent freezing efficiency and optimal results.
- Two-Speed Motor: Our freezer is equipped with a two-speed motor that not only expands its range of use but also helps save energy.
- Multi-Directional Freezing: Frozen products are exposed to wind in multiple directions - up, down, front, and back, ensuring perfect freezing and improved efficiency.
- High-Quality Conveying Belt: We use only the best quality conveying mesh or plate belts to ensure that your processed food meets the highest hygiene standards.
- Variable Frequency Drive: Our freezer offers a stepless speed regulation system that allows you to adjust the freezing time of your products according to your specific needs, which makes it easy to adapt to the processing of various frozen products.
- Integral Aluminum Evaporator: The integral aluminum tube and aluminum sheet evaporator not only improves food hygiene but also enhances heat exchange efficiency.
- Thermal Insulation System: Our high-quality polyurethane foam thermal insulation system, paired with double-sided stainless steel plates, provides remarkable heat insulation.
- Quick-frozen pastry
- Quick-frozen sea food
- Quick-frozen poultry
- Quick-frozen vegetables
